降压开关稳压器, 固定, 4.2V-42V输入, 3.3V和750mA输出, DFN-10
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 0.75 A. Use this part at voltages between 4.2 V and 42 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Using a line regulation of 0.01%/V is needed for a programmable DC power supply. You can operate this at a switching frequency of 200 to 2200 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 3.3 V
输出电流 750 mA
针脚数 10
开关频率 2.2 MHz
输入电压Max 42 V
输入电压Min 4.2 V
输出电压Min 3.3 V
输出电流Max 0.75 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.2V ~ 42V
安装方式 Surface Mount

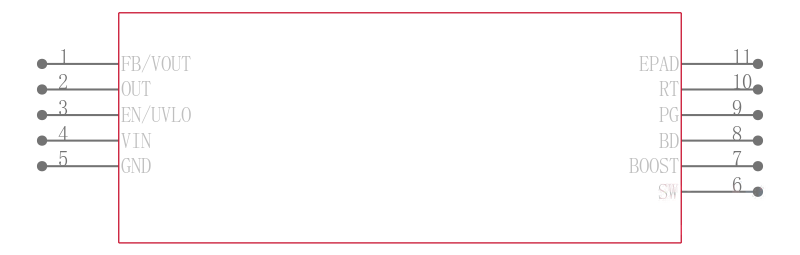

引脚数 10

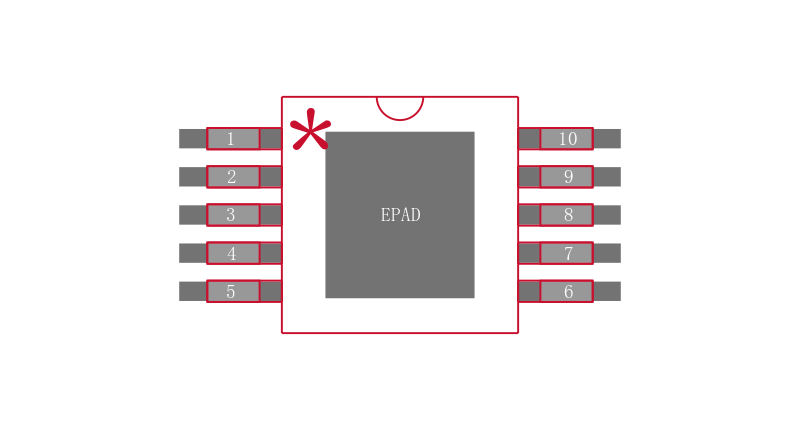

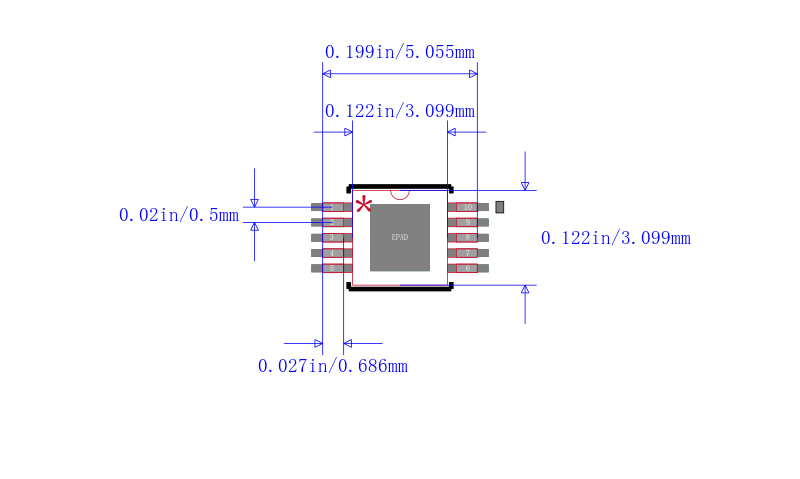

封装 DFN-10
高度 0.86 mm
封装 DFN-10
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT3973IMSE-3.3#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3973IMSE-3.3#TRPBF 凌力尔特 | 类似代替 | LT3973IMSE-3.3#PBF和LT3973IMSE-3.3#TRPBF的区别 |
