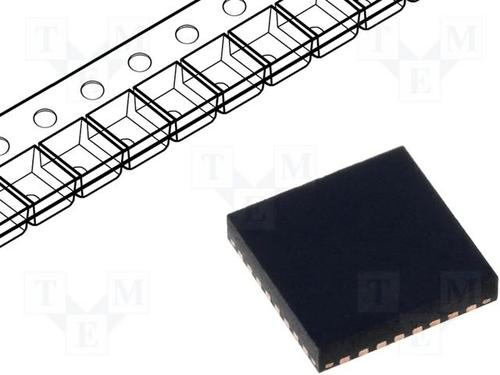

LINEAR TECHNOLOGY LTC3839EUH#PBF 直流/直流控制器, 多相, 4.5V至38V, 1路输出, 同步降压, 2MHz, QFN-32
Need to change voltage levels in a DC circuit? Use the synchronous step down DC voltage controller from . This DC voltage controller has 2 outputs. With an output that has a voltage of 0.6 to 5.5 V, this is power management at its best. This DC voltage controller has an input voltage of 4.5 to 38 V. This part offers a switching frequency of 200 to 2000 kHz in order to work properly. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 0.6V ~ 5.5V
输出电流 25 A
针脚数 32
开关频率 2 MHz
占空比 100 %
输入电压Max 38 V
输入电压Min 4.5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 38V
电源电压Max 38 V
电源电压Min 4.5 V
输入电压 4.5.38 V
安装方式 Surface Mount
引脚数 32
封装 QFN-32
封装 QFN-32
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3839EUH#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3839EUH#TRPBF 凌力尔特 | 功能相似 | LTC3839EUH#PBF和LTC3839EUH#TRPBF的区别 |
