LTC3637EDHC#PBF

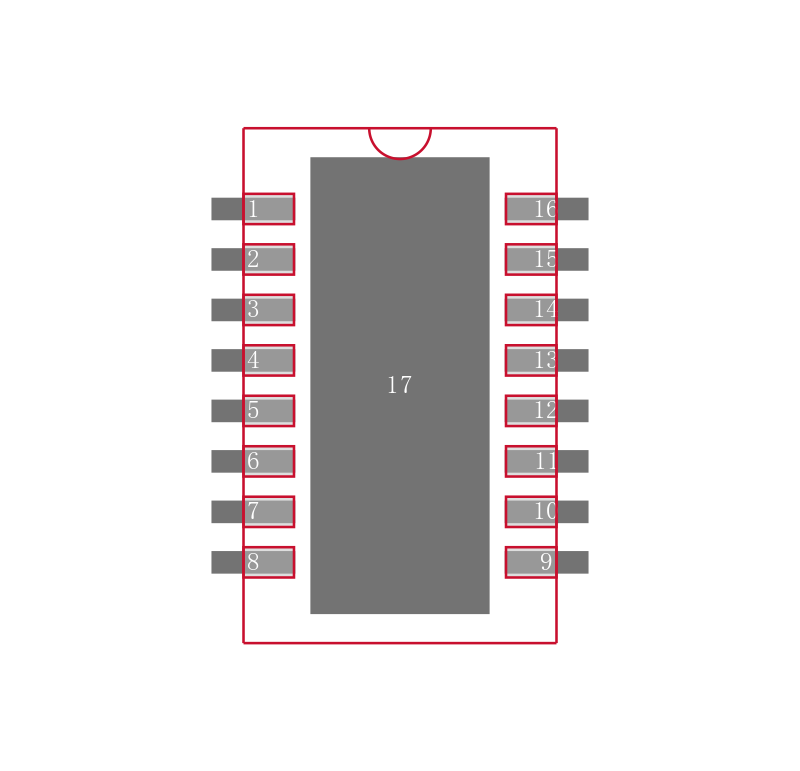

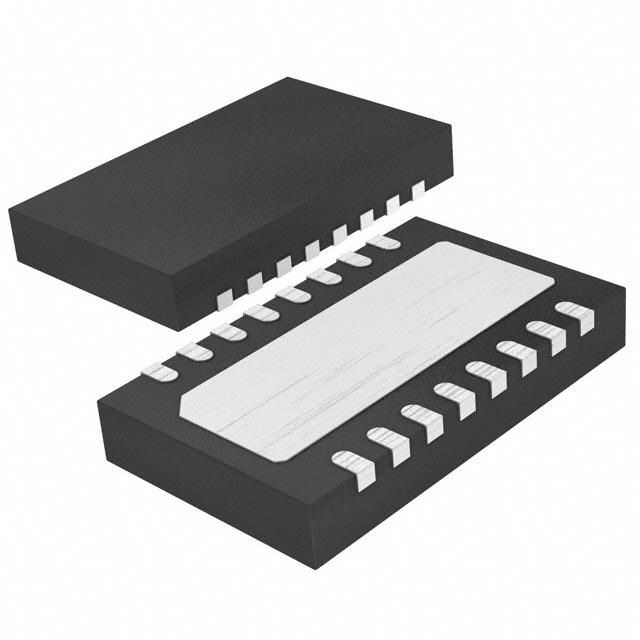

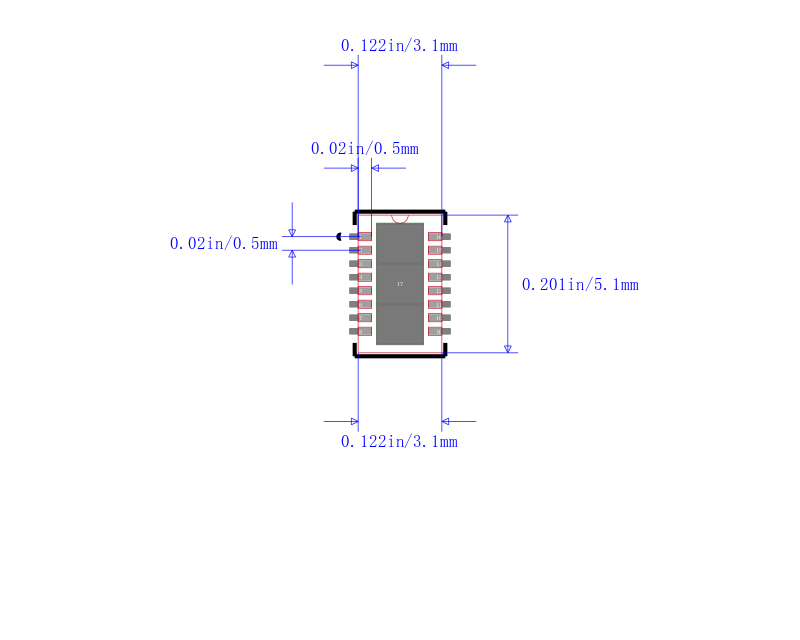

LINEAR TECHNOLOGY  LTC3637EDHC#PBF  芯片, 直流/直流转换器, 降压, 1A, DFN-16

The is a high-efficiency step-down DC-to-DC Regulator with an internal high side power switch that draws only 12µA DC supply current while maintaining a regulated output voltage at no load. The LTC3637 can supply up to 1A load current and features a programmable peak current limit that provides a simple method for optimizing efficiency and for reducing output ripple and component size. The LTC3637"s combination of Burst Mode® operation, integrated power switch, low quiescent current and programmable peak current limit provides high efficiency over a broad range of load current. With its wide input range of 4 to 76V and programmable overvoltage lockout, the LTC3637 is a robust regulator suited for regulating from a wide variety of power sources. Additionally, the LTC3637 includes a precise run threshold and soft-start feature to guarantee that the power system start-up is well-controlled in any environment.

.

No compensation required

.

Low dropout operation - 100% duty cycle

.

Precise RUN pin threshold

.

Internal and external soft-start

.

Few external components required

.

Programmable input overvoltage lockout

.

Internal 350mR power MOSFET

.

Programmable 1.8, 3.3, 5V or adjustable output

.

0.8V ±1% Feedback voltage reference
