LM5005MH

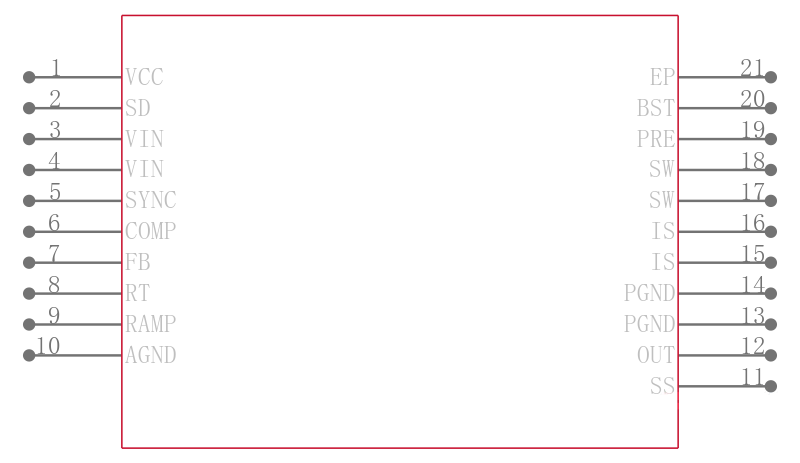

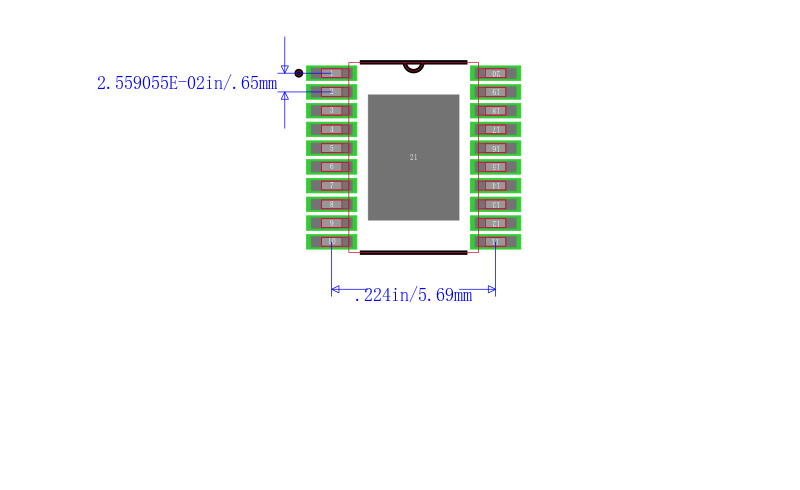

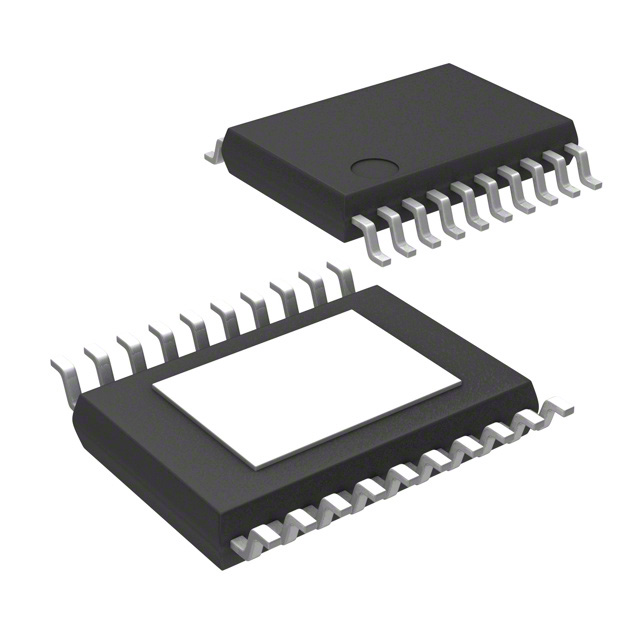

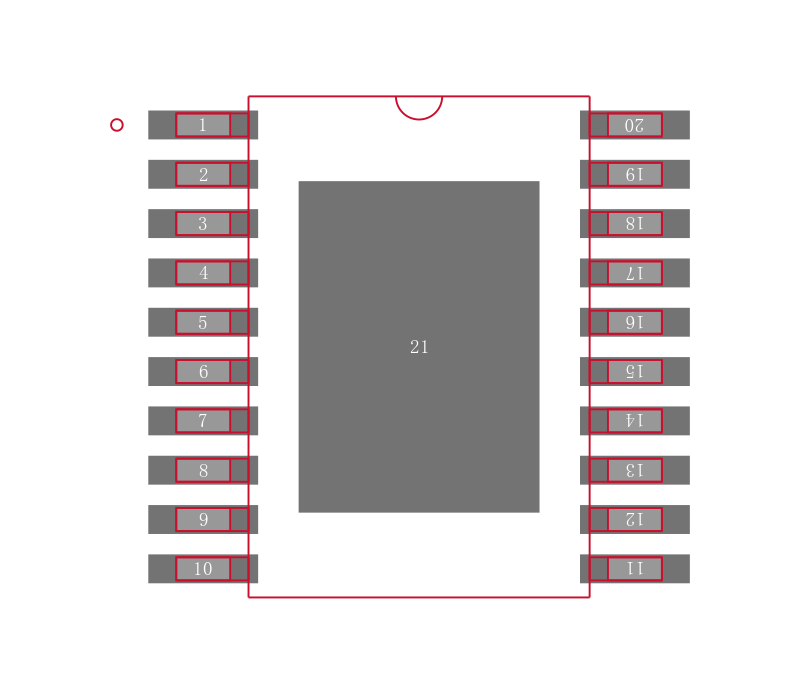

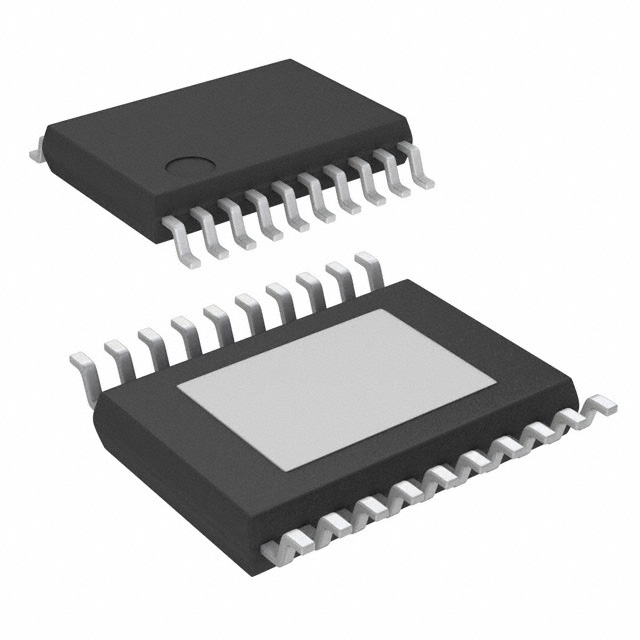

TEXAS INSTRUMENTS  LM5005MH  直流-直流开关降压逐步递减稳压器, 可调, 7V-75V输入, 1.225V-70V输出, 2.5A输出, HTSSOP-20

The is a 2.5A non-synchronous Current-mode Buck Regulator features all of the functions necessary to implement an efficient high voltage buck regulator using a minimum of external components. This easy to use regulator includes a 75V N-channel buck switch with an output current capability of 2.5A. The regulator control method is based upon current mode control utilizing an emulated current ramp. Current mode control provides inherent line feed-forward, cycle-by-cycle current limiting and ease of loop compensation. The use of an emulated control ramp reduces noise sensitivity of the pulse-width modulation circuit, allowing reliable control of very small duty cycles necessary in high input voltage applications. The operating frequency is programmable from 50kHz to 500kHz. An oscillator synchronization pin allows multiple LM5005 regulator to self-synchronize or to be synchronized to an external clock.

.

Internal high voltage bias regulator

.

Current mode control with emulated inductor current ramp

.

Single resistor oscillator frequency setting

.

Oscillator synchronization input

.

Programmable soft-start

.

Shutdown/standby input

.

Wide bandwidth error amplifier

.

Thermal shutdown

This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
