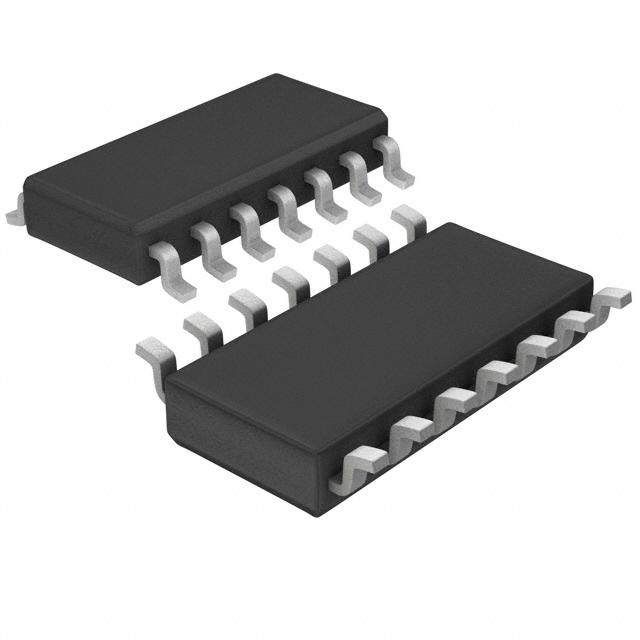

LINEAR TECHNOLOGY LTC1265CS-5#PBF 芯片, 直流/直流转换器 5V
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 1.2 A. With a fixed output that has a voltage of 5 V, this is power management at its best. This converter is 95 % efficient. Your circuit has the capability to produce a constant current at its output by using a load regulation of 100mV and line regulation of 40mV. Its switching regulator has a frequency of 700 kHz. This converter has a minimum operating temperature of 0 °C and a maximum of 70 °C.
频率 700 kHz
输出接口数 1
输出电压 5 V
输出电流 1.2 A
针脚数 14
开关频率 700 kHz
输入电压Max 13 V
输入电压Min 4 V
输出电压Min 5 V
输出电流Max 1.2 A
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 3.5V ~ 12V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
高度 1.5 mm
封装 SOIC-14
工作温度 0℃ ~ 70℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC1265CS-5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1265CS-5#TRPBF 凌力尔特 | 类似代替 | LTC1265CS-5#PBF和LTC1265CS-5#TRPBF的区别 |
LTC1265CS-5 凌力尔特 | 功能相似 | LTC1265CS-5#PBF和LTC1265CS-5的区别 |
