LT3030EUFD#PBF

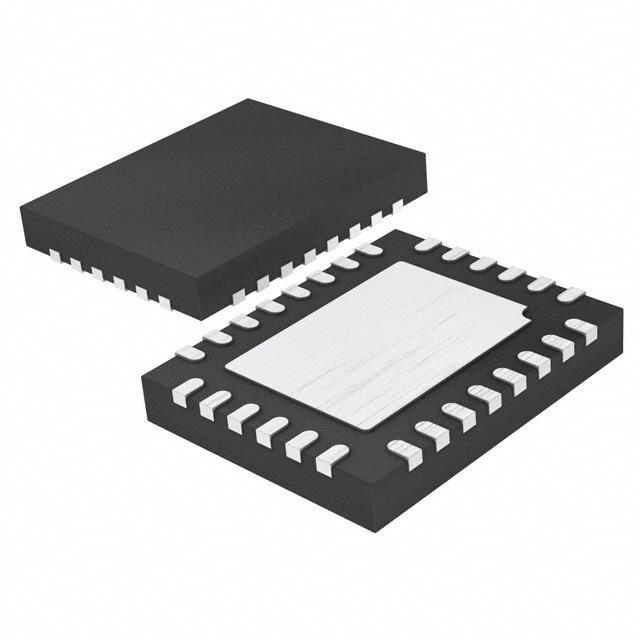

LINEAR TECHNOLOGY  LT3030EUFD#PBF  芯片, 稳压器, LDO, 双路, 1.8-20V, 0.3VDO, 1.2V, 28QFN

The is a dual micro-power low noise low-dropout Linear Regulator operates with either common or independent input supplies for each channel, over a 1.7 to 20V input voltage range. Output 1/Output 2 supply 750/250mA respectively with a typical dropout voltage of 300mV. With an external 10nF bypass capacitor, output noise is only 20µVRMS over a 10Hz to 100kHz bandwidth. Designed for use in battery-powered systems, the low 120/75µA quiescent current makes it an ideal choice. In shutdown, quiescent current drops to less than 1µA. Shutdown control is independent for each channel and its precision logic threshold allows for voltage lockout functionality. It includes a PWRGD flag for each channel to indicate output regulation. The device optimizes stability and transient response with low ESR ceramic output capacitors, requiring a minimum of only 10/3.3µF. The adjustable output voltage device has a 1.22V reference voltage.

.

Precision threshold for shutdown logic or UVLO function

.

PWRGD flag for each output

.

Reverse battery and reverse output-to-input protection

.

Current limit with fold-back and thermal shutdown
