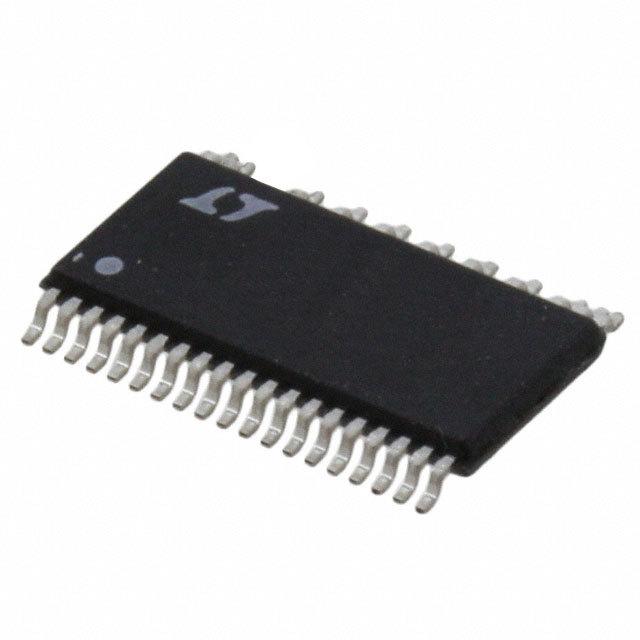

LINEAR TECHNOLOGY LT3753IFE#PBF 有源箝位同步正向控制器, 100V-8.5V电源, 500 kHz, TSSOP-38
Ideal for two part systems with different current needs, this current controller by will exceed your needs. This current mode controller supports flyback|forward topology. You can operate this at a switching frequency of 100 to 500 kHz. This device has a minimum operating supply voltage of 8.5 V and a maximum of 100 V. This current mode controller"s maximum duty cycle is 50 %. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
频率 500 kHz
电源电压DC 8.50V min
输出接口数 1
输入电压DC 12.0 V
针脚数 38
上升时间 90 ns
开关频率 100kHz ~ 500kHz
最大占空比 50 %
下降时间 90 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 100 V
电源电压Min 8.5 V
输入电压 12 V
安装方式 Surface Mount
引脚数 38
封装 TSSOP-38
封装 TSSOP-38
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT3753IFE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3753MPFE#PBF 凌力尔特 | 完全替代 | LT3753IFE#PBF和LT3753MPFE#PBF的区别 |
LT3753HFE#PBF 凌力尔特 | 完全替代 | LT3753IFE#PBF和LT3753HFE#PBF的区别 |
LT3753IFE#TRPBF 凌力尔特 | 完全替代 | LT3753IFE#PBF和LT3753IFE#TRPBF的区别 |
