LINEAR TECHNOLOGY LTC3769IUF#PBF 直流/直流控制器, 高性能, 4.5V至60V, 1路输出, 同步升压, 900kHz, QFN-24
Many components require different DC voltage levels to operate properly. The boost DC voltage controller from can safely provide the proper level. With an output that has a voltage of 4.5 to 60 V, this is power management at its best. This DC voltage controller has single output. This DC voltage controller has an input voltage of 4.5 to 60 V. It has a switching frequency of 50 to 900 kHz. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 4.50V min
输出接口数 1
输出电压 4.5V ~ 60V

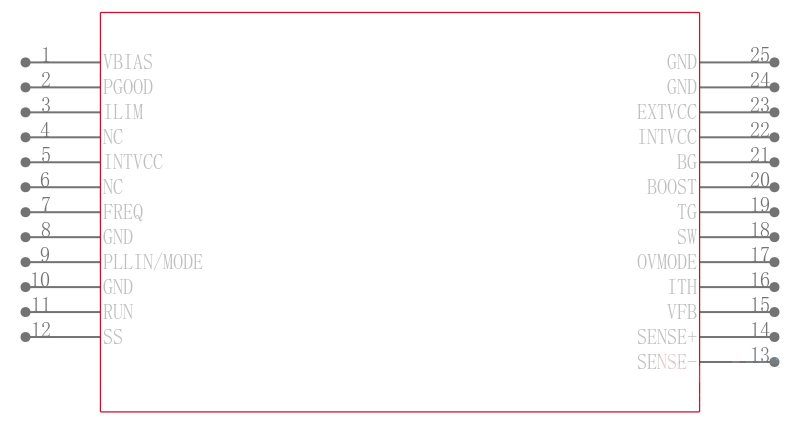

针脚数 24
开关频率 900 kHz
占空比 100 %
输入电压Max 60 V
输入电压Min 4.5 V
最大占空比 0.96
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 60 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 24

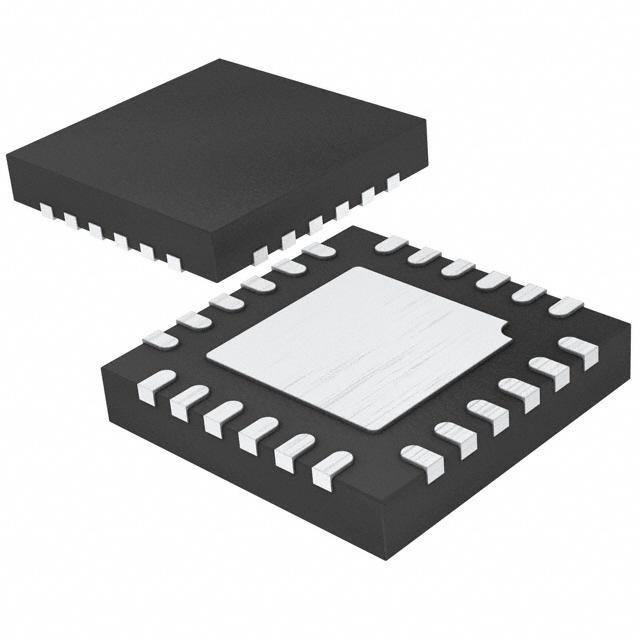

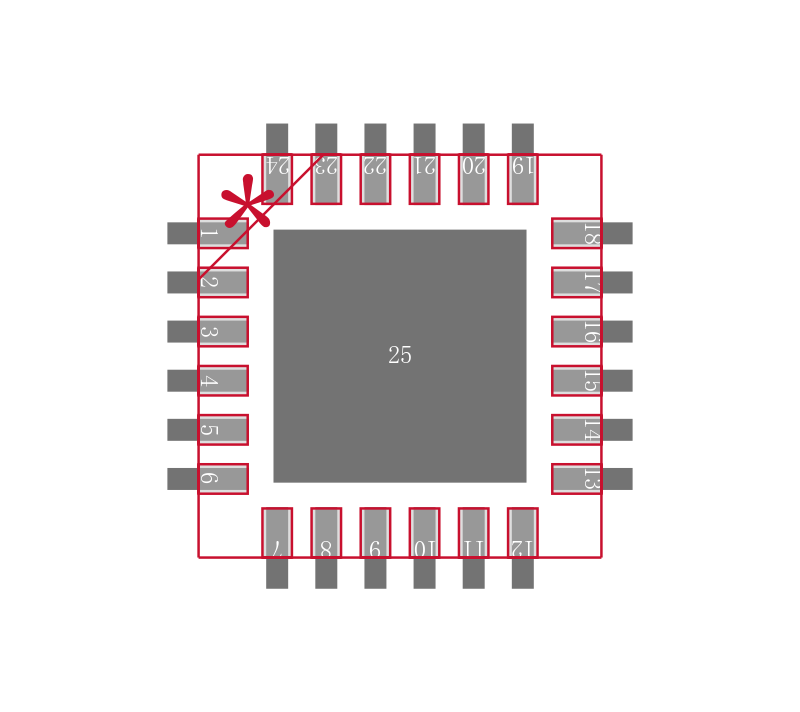

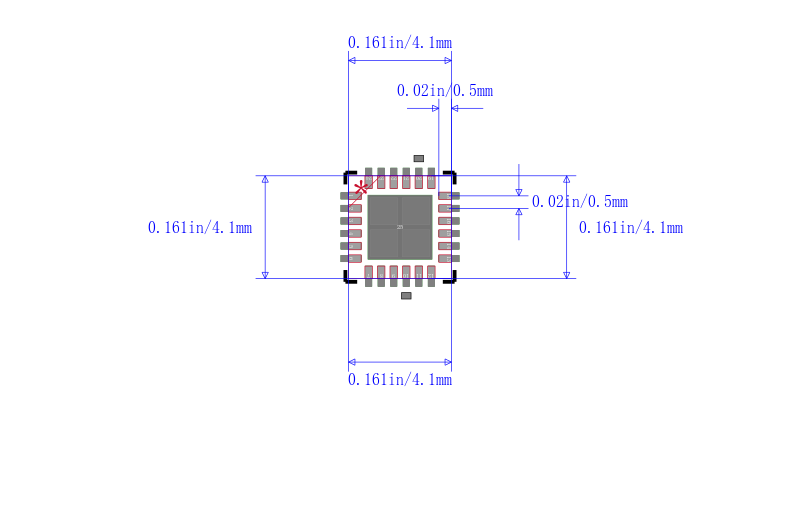

封装 QFN-24
封装 QFN-24
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3769IUF#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3769MPUF#PBF 凌力尔特 | 完全替代 | LTC3769IUF#PBF和LTC3769MPUF#PBF的区别 |
LTC3769IUF#TRPBF 凌力尔特 | 类似代替 | LTC3769IUF#PBF和LTC3769IUF#TRPBF的区别 |
