LINEAR TECHNOLOGY LT1085CM-3.3#PBF 固定电压稳压器, LDO, 2.6V至20V, 1.3V压差, 3.3V输出, 3A输出, TO-263-3
The is a 3.3V fixed output low-dropout LDO Linear Regulator. The internal circuitry is designed to operate down to 1V input to output differential and the dropout voltage is fully specified as a function of load current. Dropout is guaranteed at a maximum of 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the output voltage to 1%. Current limit is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions. The device is pin compatible with older three-terminal regulators. A 10µF output capacitor is required on this device.
- .
- Guaranteed dropout voltage at multiple current levels
- .
- 0.015% Line regulation
- .
- 0.1% Load regulation
- .
- 100% Thermal limit functional test
输出接口数 1
输入电压DC 15.0V max
输出电压 3.3 V
输出电流 3 A
供电电流 10 mA
针脚数 3
耗散功率 30 W
静态电流 5 mA
跌落电压 1.3 V
输入电压Max 20 V
输入电压Min 2.6 V
输出电压Min 3.3 V
输出电流Max 3 a
工作温度Max 125 ℃
工作温度Min 0 ℃
耗散功率Max 30000 mw
精度 ±1 %
输入电压 ≤25 V
安装方式 Surface Mount
引脚数 3

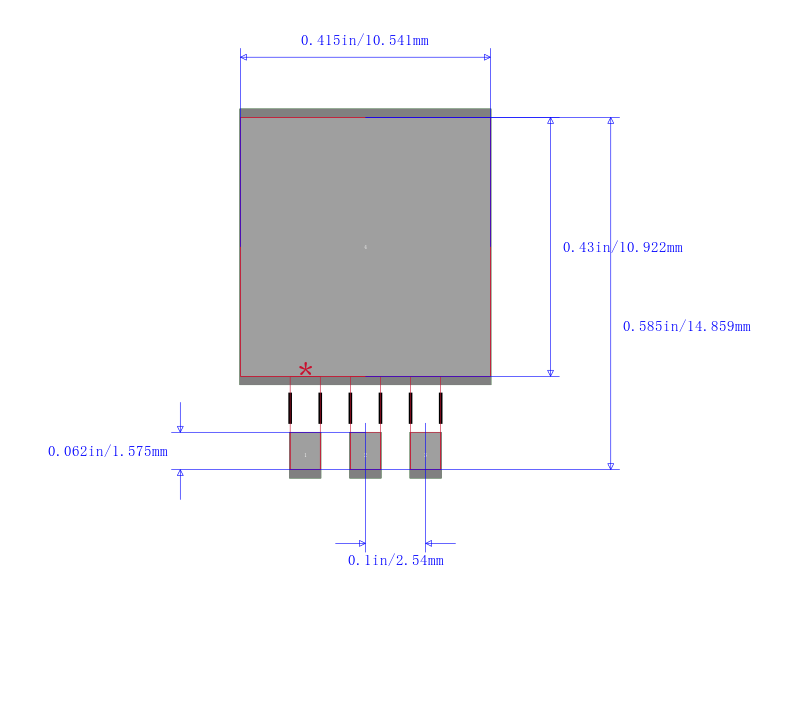

封装 TO-263-4
封装 TO-263-4
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 Industrial, Power Management, 工业, 电源管理
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1085CM-3.3#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LM1085IS-3.3/NOPB 德州仪器 | 类似代替 | LT1085CM-3.3#PBF和LM1085IS-3.3/NOPB的区别 |
LT1086CM-3.3#PBF 凌力尔特 | 类似代替 | LT1085CM-3.3#PBF和LT1086CM-3.3#PBF的区别 |
LT1085CM-3.3#TRPBF 凌力尔特 | 类似代替 | LT1085CM-3.3#PBF和LT1085CM-3.3#TRPBF的区别 |
