Conv DC-DC 5V to 25V Synchronous Step Down Single-Out 2.42V to 20.64V 1.5A 8Pin SOIC N Tube
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 1.5 A. With a small input voltage of 5 V and a max of 25 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 2.42 to 20.64 V, this is power management at its best. Users like the line regulation of 0.03%/V. You can operate this at a switching frequency of 560 kHz. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 2.42V ~ 21.5V
输出电流 1.5 A
开关频率 500 kHz
拓扑结构 Buck
输入电压Max 25 V
输入电压Min 5 V
输出电压Max 21.5 V
输出电压Min 2.42 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 5 V
输入电压 5V ~ 25V
安装方式 Surface Mount

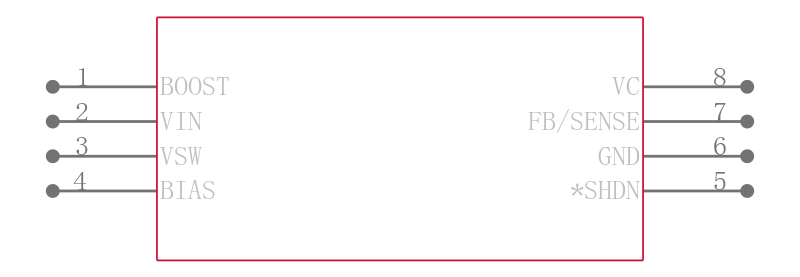

引脚数 8

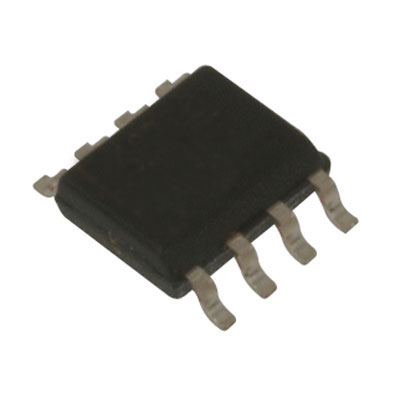

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1376IS8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1376IS8#TR 凌力尔特 | 完全替代 | LT1376IS8#PBF和LT1376IS8#TR的区别 |
LT1376IS8#TRPBF 凌力尔特 | 类似代替 | LT1376IS8#PBF和LT1376IS8#TRPBF的区别 |
