LTC3568IDD#PBF

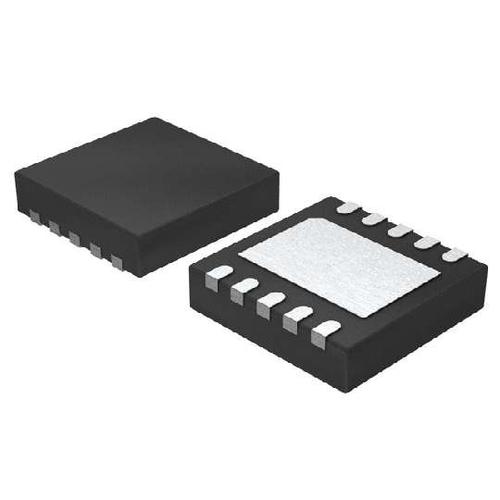

LINEAR TECHNOLOGY  LTC3568IDD#PBF  直流-直流开关降压逐步递减稳压器, 可调, 2.5V-5.5V输入, 800mV-5V输出, 1.8A输出, DFN-10

The is a constant-frequency synchronous step-down DC-to-DC Converter intended for medium power applications. It operates from a 2.5 to 5.5V input voltage range and has a user-configurable operating frequency up to 4MHz, allowing the use of tiny, capacitors and inductors 2mm or less in height. The output voltage is adjustable from 0.8 to 5V. Internal synchronous power switches with 2.4A peak current ratings provide high efficiency. The LTC3568"s current-mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and output capacitors. The LTC3568 can be configured for automatic power saving Burst Mode® operation to reduce gate charge losses when the load current drops below the level required for continuous operation. For reduced noise and RF interference, the SYNC/MODE pin can be configured to skip pulses or provide forced continuous operation.

.

Stable with ceramic capacitors

.

Current-mode operation for excellent line and load transient response

.

Short-circuit protection

.

Synchronizable to external clock

.

Up to 96% high efficiency

.

100% Duty cycle low dropout operation

.

Low shutdown current of IQ

.

0.11R Low RDSON internal switches
