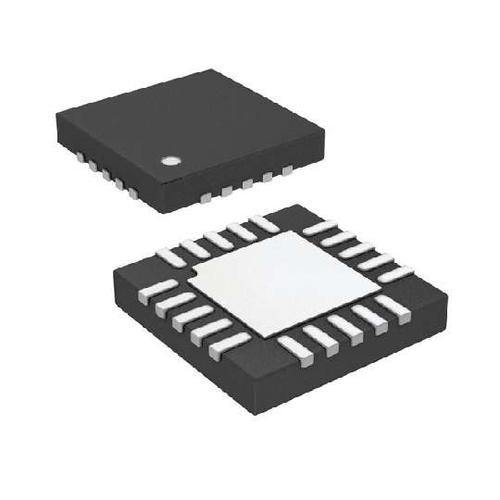

LINEAR TECHNOLOGY LTC4009IUF#PBF 芯片, 电池充电器, 20QFN
The is a constant-current/constant-voltage Battery Charger Controller. It uses a synchronous quasiconstant frequency PWM control architecture that will not generate audible noise with ceramic bulk capacitors. Charge current is set by the combination of external sense, input and programming resistors. With no built-in termination, the LTC4009 family charges a wide range of batteries under external control. It features a fully adjustable output voltage. The device includes AC adapter input current limiting which maximizes the charge rate for a fixed input power level. An external sense resistor programs the input current limit and the ICL status pin indicates when the battery charge current is being reduced as a result of AC adapter current limiting. The CHRG status pin is active during all charging modes, including special indication for low charge current.
输入电压DC 12.0 V
输出电压 2V ~ 28V
针脚数 20
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 6V ~ 28V
电源电压Max 28 V
输入电压 28 V
安装方式 Surface Mount
引脚数 20
封装 QFN-20
封装 QFN-20
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Unknown
包装方式 Each
制造应用 Power Management, 计算机和计算机周边, Portable Devices, 电源管理, 便携式器材, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC4009IUF#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC4009IUF#TRPBF 凌力尔特 | 完全替代 | LTC4009IUF#PBF和LTC4009IUF#TRPBF的区别 |
LTC4009CUF#PBF 凌力尔特 | 类似代替 | LTC4009IUF#PBF和LTC4009CUF#PBF的区别 |
LTC4009CUF#TRPBF 凌力尔特 | 类似代替 | LTC4009IUF#PBF和LTC4009CUF#TRPBF的区别 |
