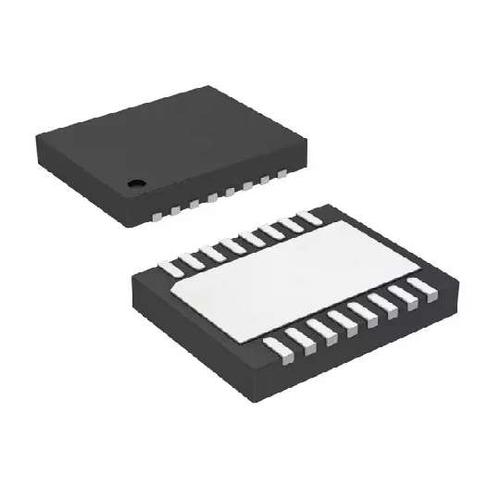

LINEAR TECHNOLOGY LT3506IDHD#PBF 芯片, 降压稳压器, 双路, 1.6A, 1.1MHZ, 16DFN
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s 2 outputs can produce a current up to 3.6 A. This will operate at a minimum voltage of 3.6 V and a maximum voltage of 25 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 0.8 to 23.25 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a line regulation of 0.005%/VTyp. Its switching regulator has a frequency of 650 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 2
输出电压 0.8V ~ 23.3V
输出电流 1.6 A
针脚数 16
开关频率 650 kHz
输入电压Max 25 V
输入电压Min 3.6 V
输出电压Max 23.25 V
输出电压Min 0.8 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3.6V ~ 25V
输入电压 3.6V ~ 25V
安装方式 Surface Mount
引脚数 16
封装 DFN-16
高度 0.75 mm
封装 DFN-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3506IDHD#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3506EDHD#PBF 凌力尔特 | 类似代替 | LT3506IDHD#PBF和LT3506EDHD#PBF的区别 |
LT3506IDHD#TRPBF 凌力尔特 | 功能相似 | LT3506IDHD#PBF和LT3506IDHD#TRPBF的区别 |
