LINEAR TECHNOLOGY LTC3824MPMSE#PBF 直流/直流控制器, 高压, 4V至60V, 1路输出, 降压, 460kHz, MSOP-10
The is a step-down DC/DC Controller designed to drive an external P-channel MOSFET. It features a wide input range of 4 to 60V and a high voltage gate driver. The constant frequency current-mode operation provides excellent performance. The LTC3824 can be configured for burst mode operation. Burst mode operation enhances low current efficiency only 40µA quiescent current and extends battery run time. The switching frequency can be programmed up to 600kHz and is easily synchronizable. Other features include current limit, soft-start, micropower shutdown and Burst Mode disable.
输出接口数 1
输出电压 0.8V ~ 36V
输出电流 10 A
针脚数 10
开关频率 460 kHz
占空比 100 %
输入电压Max 60 V
输入电压Min 4 V
最大占空比 1
工作温度Max 150 ℃
工作温度Min -55 ℃
电源电压 4V ~ 60V
电源电压Max 60 V
电源电压Min 4 V
输入电压 4V ~ 60V
安装方式 Surface Mount
引脚数 10

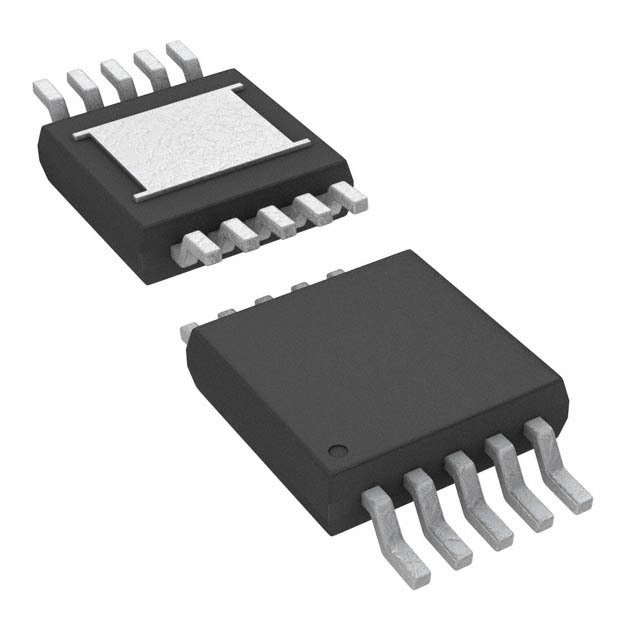

封装 MSOP-10
封装 MSOP-10
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Tube
制造应用 Computers & Computer Peripherals, 电源管理, Power Management, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3824MPMSE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3824EMSE#PBF 凌力尔特 | 类似代替 | LTC3824MPMSE#PBF和LTC3824EMSE#PBF的区别 |
LTC3824IMSE#PBF 凌力尔特 | 类似代替 | LTC3824MPMSE#PBF和LTC3824IMSE#PBF的区别 |
