开关稳压器 42V, 750mA, 2.5uA Iq Step-Down Converter
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 0.75 A. Using the part will provide the power your application needs by requiring a voltage only of 4.2 V and not exceeding a voltage of 42 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Operate at a constant current by utilizing the line regulation of 0.01%/V. You can operate this at a switching frequency of 200 to 2200 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 150 °C.
输出接口数 1
输出电压 3.3 V
输出电流 750 mA
开关频率 195kHz ~ 2.15MHz
输入电压Max 42 V
输入电压Min 4.2 V
输出电压Min 3.3 V
输出电流Max 0.75 A
工作温度Max 150 ℃
工作温度Min -40 ℃
输入电压 4.2V ~ 42V
安装方式 Surface Mount
引脚数 10

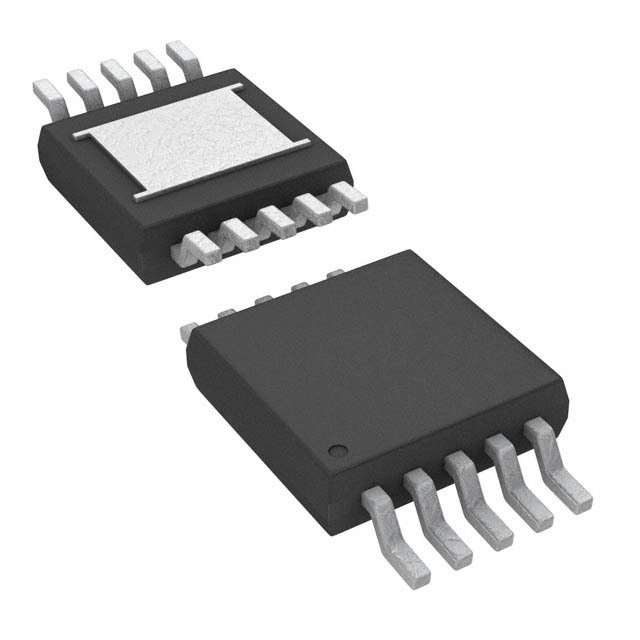

封装 MSOP-10
封装 MSOP-10
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3973HMSE-3.3#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3973HMSE-3.3#TRPBF 凌力尔特 | 类似代替 | LT3973HMSE-3.3#PBF和LT3973HMSE-3.3#TRPBF的区别 |
