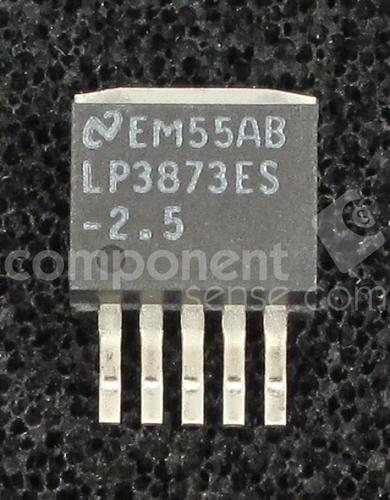

具有电源正常指示和使能功能的 3A、低压降稳压器,2.5V 和 3.3V 输出 5-DDPAK/TO-263 -40 to 125
Stable voltages are always needed for sensitive systems implement this LDO linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.08@300mA|0.8@3A V. It has an overall accuracy of ±1.5 %. This voltage regulation device"s single output can produce a current up to 3 A. With a small input voltage of 2.5 V and a max of 7 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. At a load regulation of 0.08%Typ and line regulation of 0.02%Typ a constant current can be produced at the output of your circuit. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The maximum dropout voltage is 0.1@300mA|1@3A V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输入电压DC 7.00V max
输出电压 2.5 V
输出电流 3 A
静态电流 6 mA
输出电容类型 Ceramic
跌落电压 0.08V @300mA,0.8V @3A
调节输出数 1
输入电压Max 7 V
输入电压Min 2.5 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 ≤7 V
安装方式 Surface Mount
引脚数 6

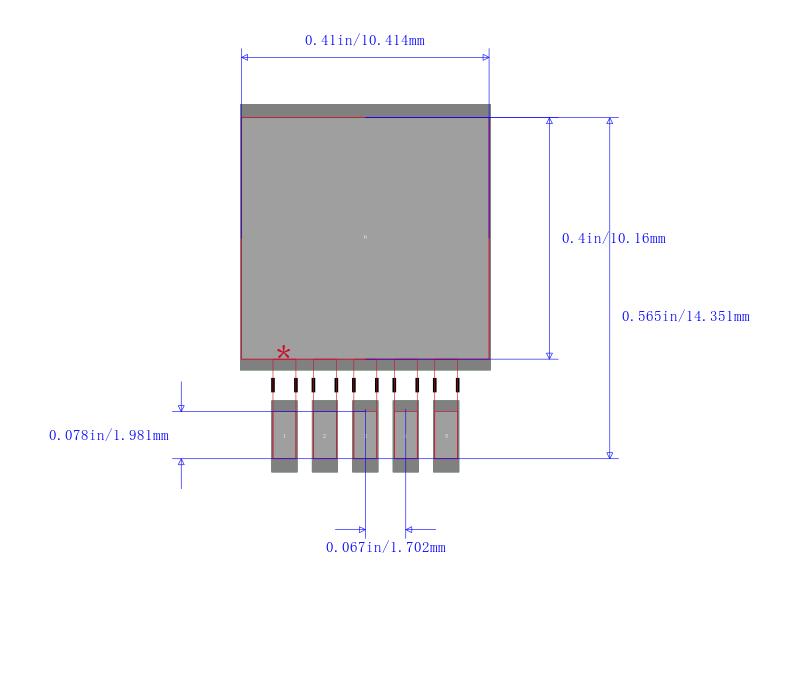

封装 TO-263-6
高度 4.83 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Rail
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3873ES-2.5 TI 德州仪器 | 当前型号 | 当前型号 |
LP3873ESX-2.5/NOPB 德州仪器 | 完全替代 | LP3873ES-2.5和LP3873ESX-2.5/NOPB的区别 |
LP3873ES-2.5/NOPB 德州仪器 | 类似代替 | LP3873ES-2.5和LP3873ES-2.5/NOPB的区别 |
