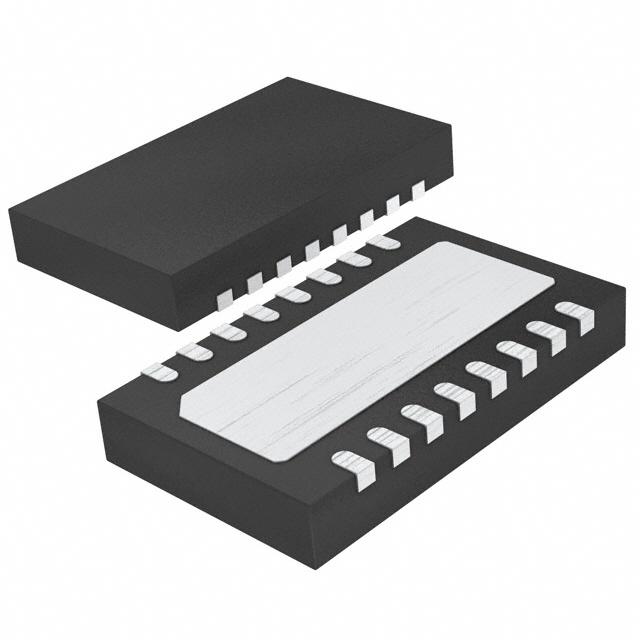

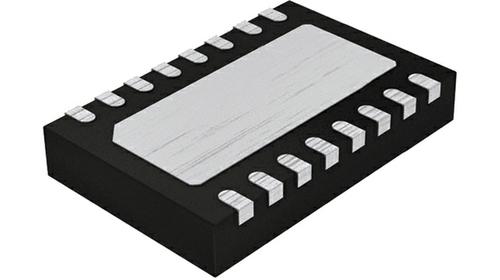

Conv DC-DC Single Step Down 4V to 65V Automotive 16Pin DFN EP
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 0.5 A. Use this part at voltages between 4 V and 65 V. With an adjustable output that has a voltage of 0.8 to 65 V, this is power management at its best. Users like the line regulation of 0.001%/VTyp. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 0.8V ~ 65V
输出电流 500 mA
开关频率 50kHz ~ 250kHz
输入电压Max 65 V
输入电压Min 4 V
输出电压Max 65 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4V ~ 65V
安装方式 Surface Mount

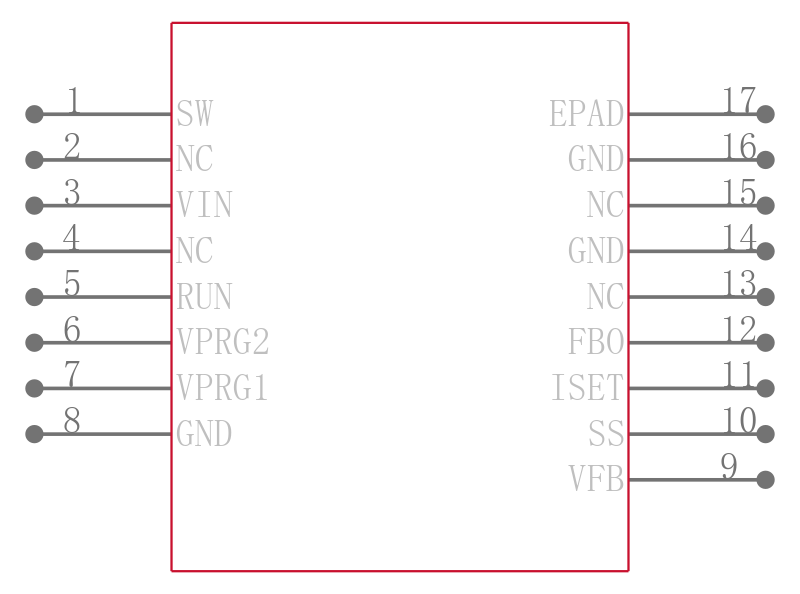

引脚数 16

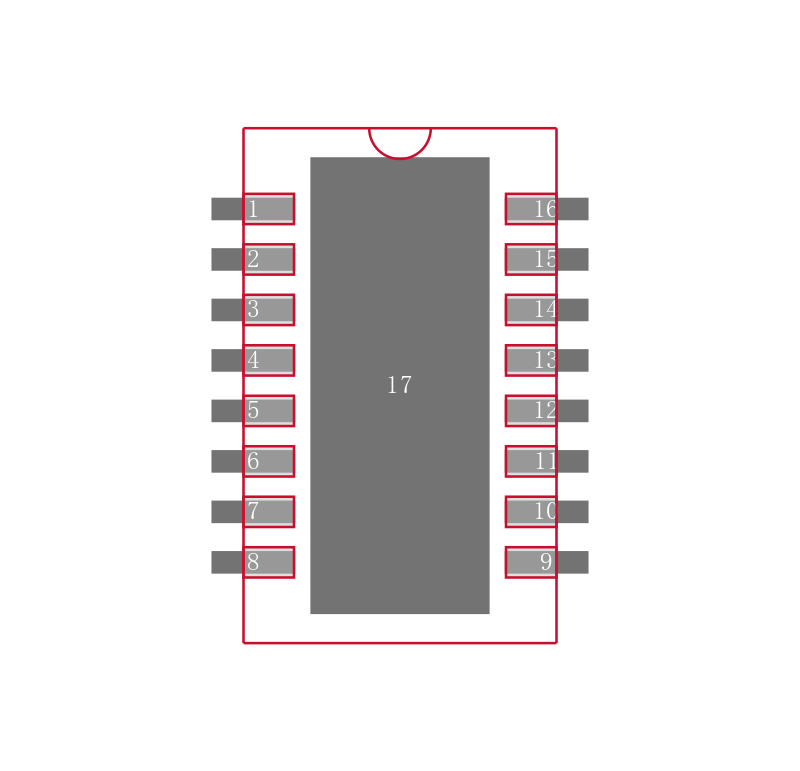

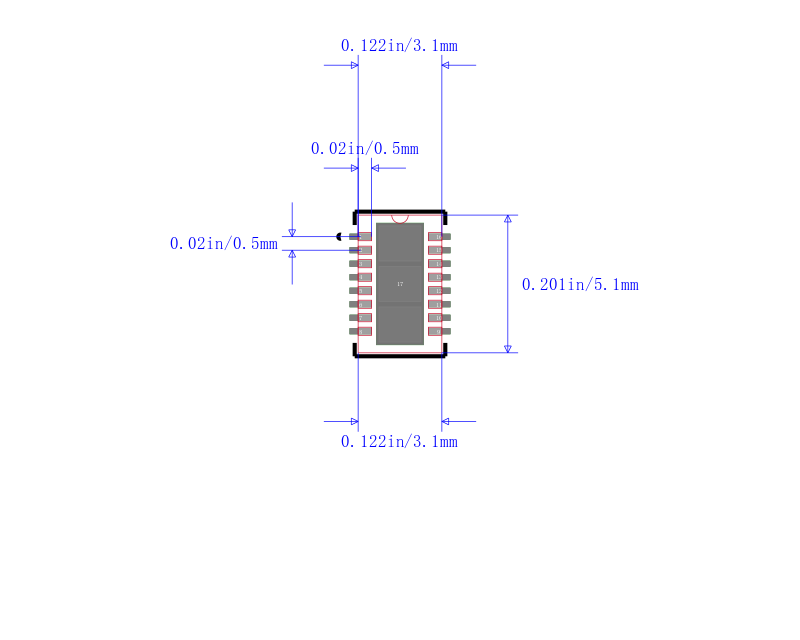

封装 DFN-16
高度 0.75 mm
封装 DFN-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3630IDHC#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3630EDHC#PBF 凌力尔特 | 类似代替 | LTC3630IDHC#PBF和LTC3630EDHC#PBF的区别 |
LTC3630MPMSE#PBF 凌力尔特 | 功能相似 | LTC3630IDHC#PBF和LTC3630MPMSE#PBF的区别 |
