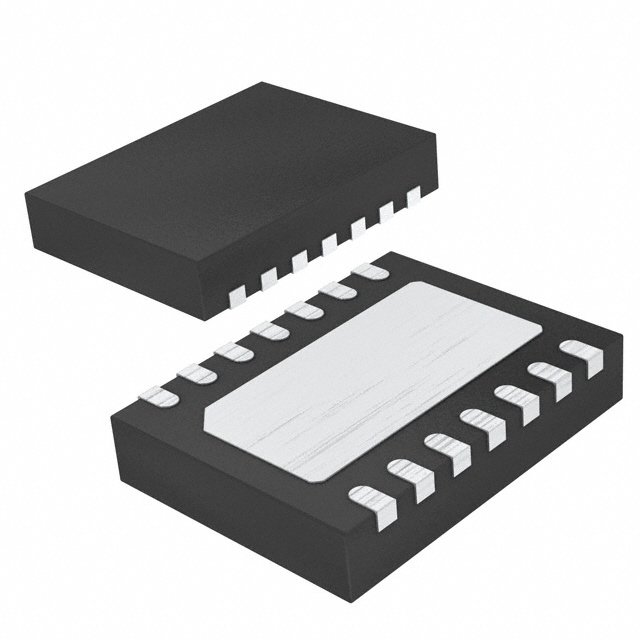

LT3681EDE#TRPBF 管装
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 2 A. This will operate at a minimum voltage of 3.6 V and a maximum voltage of 34 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.265 to 20 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a line regulation of 0.02%/V. It has a switching frequency of 250 to 3100 kHz. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 1.265V ~ 20V
输出电流 2 A
静态电流 0.05 mA
开关频率 300kHz ~ 2.8MHz
输入电压Max 34 V
输入电压Min 3.6 V
输出电压Max 20 V
输出电压Min 1.265 V
输出电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 3.6V ~ 34V
安装方式 Surface Mount
引脚数 14
封装 WFDFN-14
封装 WFDFN-14
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3681EDE#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3681EDE#PBF 凌力尔特 | 功能相似 | LT3681EDE#TRPBF和LT3681EDE#PBF的区别 |
