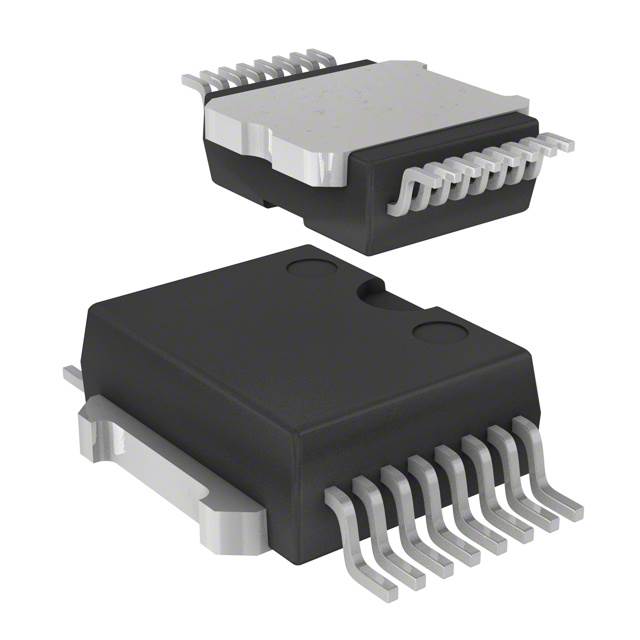

L9958SB图片1
L9958SB图片2
L9958SB图片3
L9958SB图片4
L9958SB图片5
L9958SB图片6
L9958SB图片7
L9958SB概述

STMICROELECTRONICS  L9958SB  芯片, 电机驱动器, 半桥接器, SPI, POWERSO-16

双极性 CMOS SPI PowerSO-16™


得捷:
IC MTRDRV BIPLR 4.5-5.5V 16PWRSO


立创商城:
L9958SB


贸泽:
Motor / Motion / Ignition Controllers & Drivers SPI Controlled H-Bridge Driver


e络盟:
芯片, 电机驱动器, 半桥接器, SPI, POWERSO-16


艾睿:
Does your system have a hydraulic pumps and linear actuators? Implementing these h-bridge dc L9958SB stepper motor driver manufactured by STMicroelectronics. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 4.5 V and a maximum of 5.5 V. This motor controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.


Chip1Stop:
H-Bridge Motor Driver Automotive 18-Pin16+2Tab PowerSO Tube


Newark:
# STMICROELECTRONICS  L9958SB  MOTOR DRIVER, H-BRIDGE, SPI, POWERSO-16


L9958SB中文资料参数规格
技术参数

电源电压DC 4.50V min

输出接口数 1

输出电流 8.6 A

供电电流 35 A

针脚数 16

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 4.5V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 4.5 V

封装参数

安装方式 Surface Mount

引脚数 16

封装 PowerBSOP-16

外形尺寸

封装 PowerBSOP-16

物理参数

工作温度 -40℃ ~ 150℃ TJ

其他

产品生命周期 Active

包装方式 Tube

制造应用 电机驱动与控制, 通用, Motor Drive & Control

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

L9958SB引脚图与封装图
L9958SB电路图
在线购买L9958SB
型号: L9958SB
描述:STMICROELECTRONICS  L9958SB  芯片, 电机驱动器, 半桥接器, SPI, POWERSO-16
