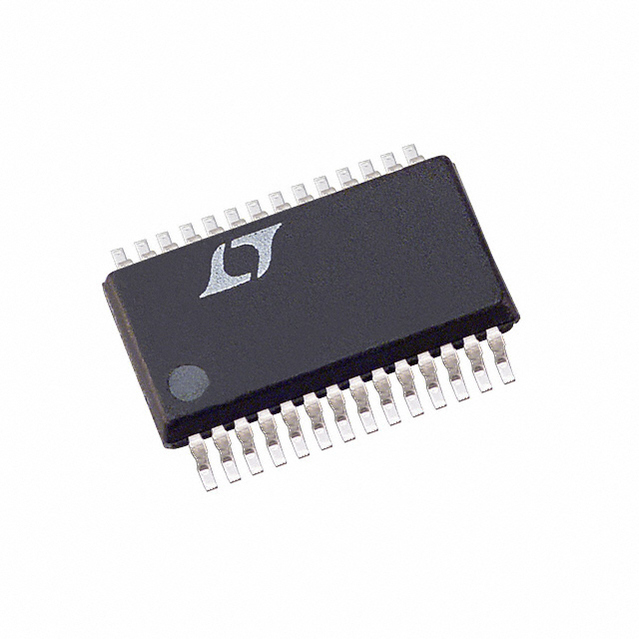

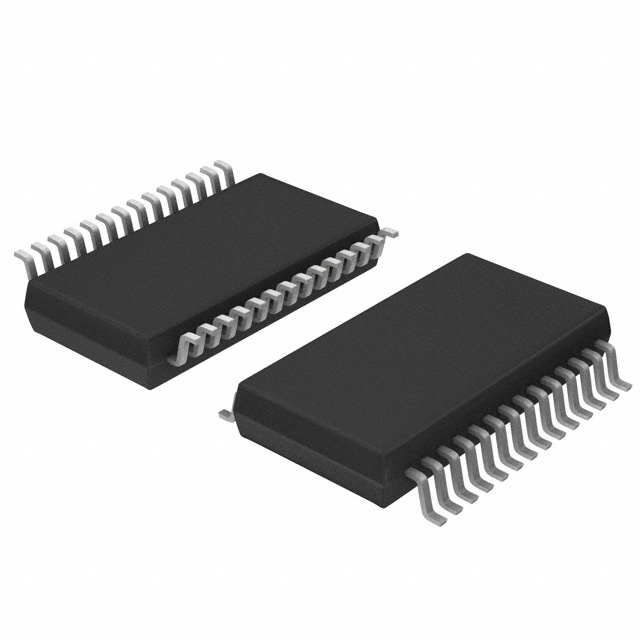

LINEAR TECHNOLOGY LTC1929CG#PBF DC-DC Controller, High Efficiency, 2-Phase, 4V to 36V, 1 Output, Synchronous Buck, 360kHz, SSOP-28
"s current controller can modulate different levels of voltage, depending on what your requirements are. This current mode controller supports boost|buck topology. Its single PWM output produces a current of 3000Max mA. You can operate this at a switching frequency of 300 kHz. This current mode controller"s maximum duty cycle is 99 %. This device has a minimum operating supply voltage of 4 V and a maximum of 36 V. This current mode controller has an operating temperature range of 0 °C to 85 °C.
电源电压DC 4.00V min
输出接口数 1
输出电压 28.0 V
输出电流 3 A
上升时间 30 ns
开关频率 360 kHz
占空比 99.5 %
最大占空比 0.995
下降时间 40 ns
工作温度Max 85 ℃
工作温度Min 0 ℃
电源电压 4V ~ 36V
电源电压Max 36 V
电源电压Min 4 V
输入电压 4V ~ 36V
安装方式 Surface Mount
引脚数 28
封装 SSOP-28
封装 SSOP-28
工作温度 0℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC1929CG#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1929CG#TRPBF 凌力尔特 | 类似代替 | LTC1929CG#PBF和LTC1929CG#TRPBF的区别 |
LTC1929CG-PG 凌力尔特 | 功能相似 | LTC1929CG#PBF和LTC1929CG-PG的区别 |
