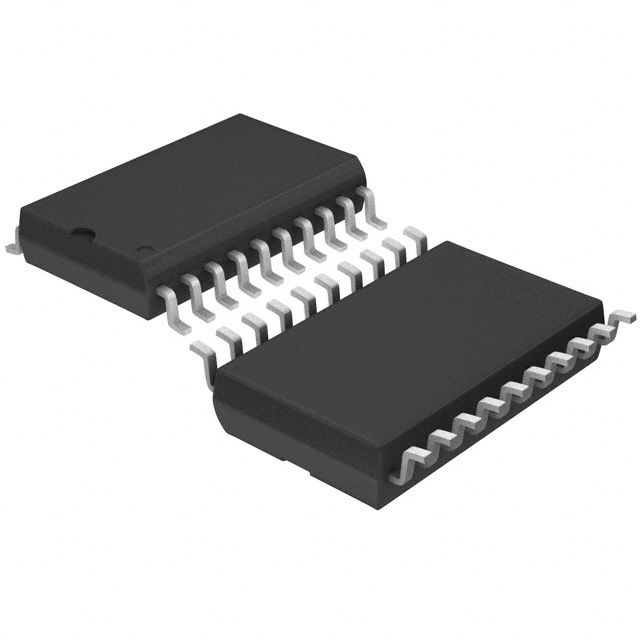

LT1509CSW#PBF

LINEAR TECHNOLOGY  LT1509CSW#PBF  芯片, PWM控制器

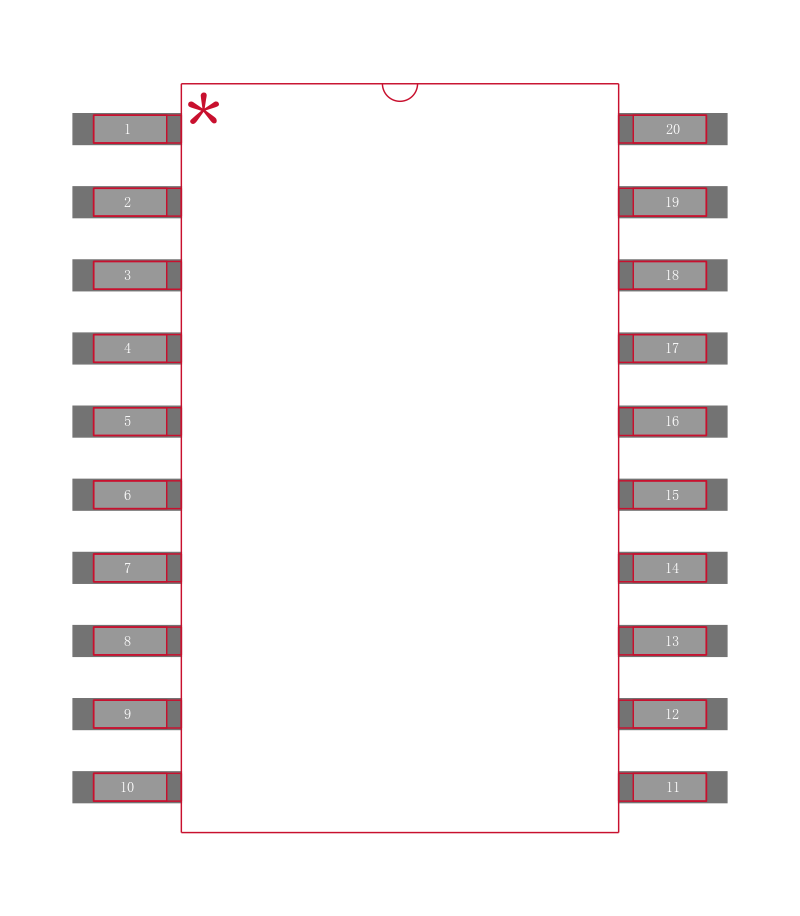

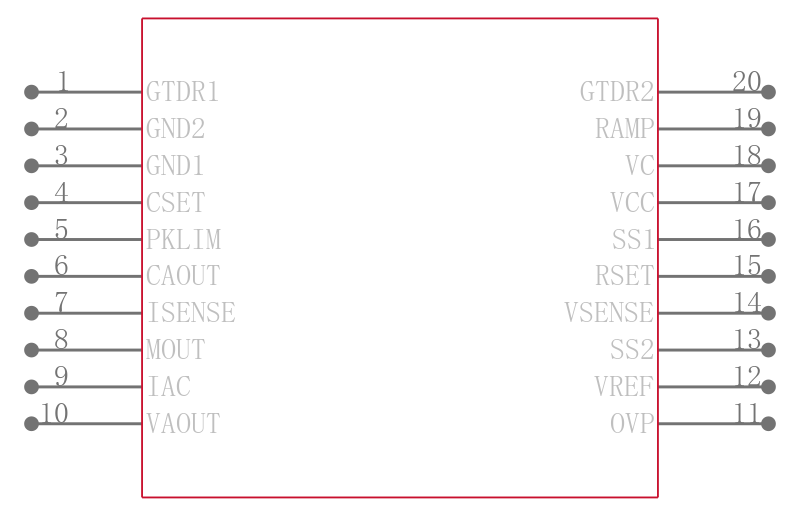

The is a Power Factor and PWM Controller provides complete solution for universal off-line switching power supplies utilizing active power factor correction. The PFC section is identical to the LT1248 PFC controller except the EN/SYNC pin is removed because PFC and PWM are synchronized internally. The current-mode PWM section contains all the primary side functions to convert the PFC pre-regulated high voltage output to an isolated low voltage output. The PWM duty cycle is internally limited to 47% maximum 50% to prevent transformer saturation. PWM soft start begins when PFC output reaches the preset voltage. In the event of brief line loss, the PWM will be shut off when the PFC output voltage drops below 73% of the preset value.

.

PFC and PWM single chip solution

.

Current mode PWM

.

Instantaneous overvoltage protection

.

Dedicated overvoltage protection OVP Pin

.

Minimal line current dead zone

.

Line switching noise filter

.

Fast 2A Peak current gate drivers

.

Separate soft start controls
