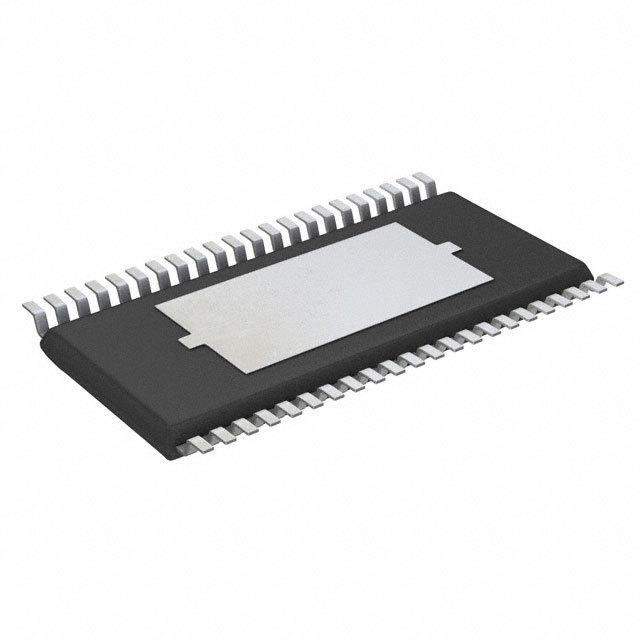

LV8740V-MPB-E

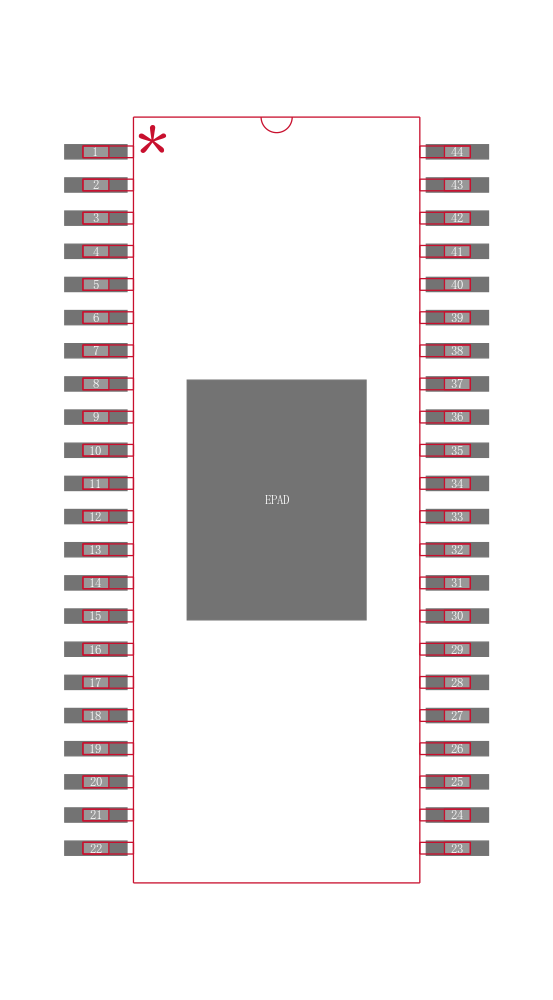

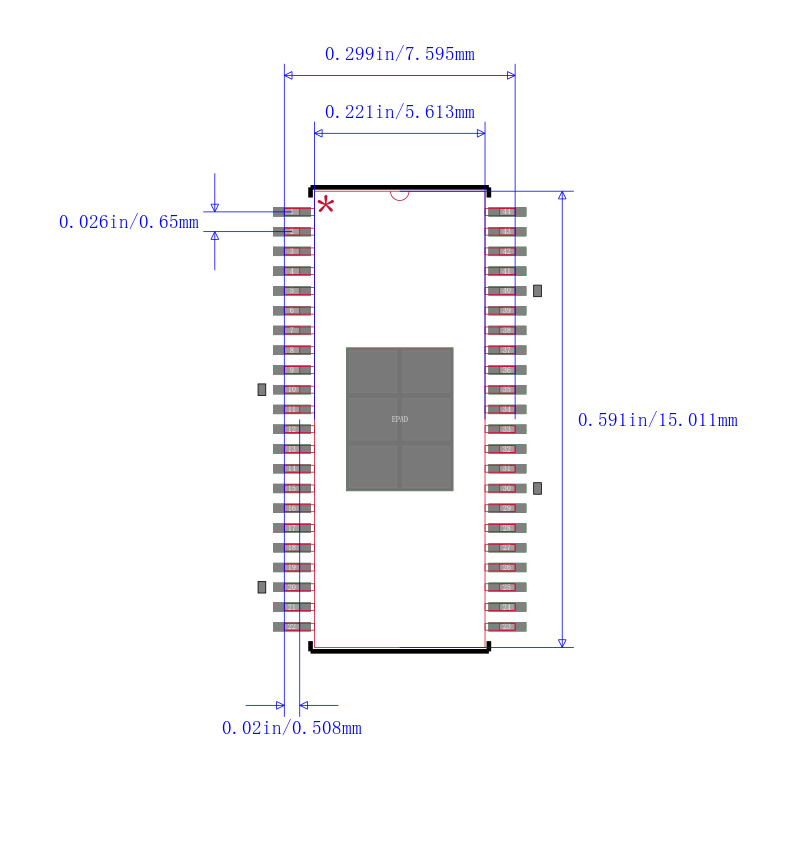

LV8740V 系列 38 V 2.5 A 3.45 W 双通道 PWM 步进电机驱动器 - SSOP-44J

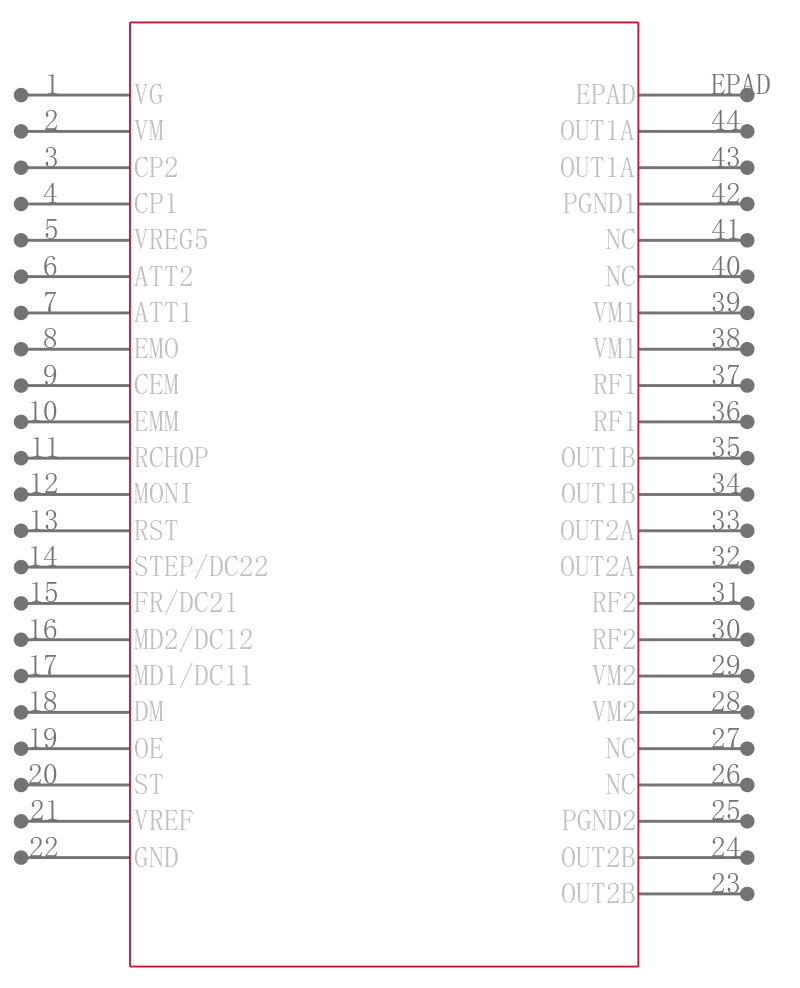

The LV8740V is a 2-channel H-bridge driver IC that can switch a stepper motor driver, which is capable of micro-step drive and supports Quarter-step excitation, and two channels of a brushed DC motor driver, which supports forward, reverse, brake, and standby of a motor. It is ideally suited for driving brushed DC motors and stepper motors used in office equipment and amusement applications.

Features |   | Benefits

---|---|---

 | |  | |  |

.

On resistance upper side : 0.3Ω ; lower side : 0.2Ω ; total of upper and lower : 0.5Ω ; Ta = 25°C, IO = 2.5A

|   |

.

Good Thermal Performance, High efficiency

.

Excitation mode can be set to Full-step, Half-step full torque, Half-step , or Quarter-step

|   |

.

Various Step Adjustment Available

.

Motor holding current selectable in four steps

|   |

.

Low Consumption

.

Output short-circuit protection circuit selectable from latch-type or auto reset-type incorporated

|   |

.

Safety design

.

Built-in thermal shutdown circuit

|   |

.

Thermal protection

.

No control power supply required

|   |

.

Easy Design

.

Single-channel PWM current control stepper motor driver selectable with DC motor driver channel 2 incorporated.

|   |

.

BiCDMOS process IC

|   |

.

Excitation step proceeds only by step signal input

|   |

.

Unusual condition warning output pins

|   |

.

Forward/Reverse/Brake/Stand-by Function

|   |
