具有电源正常指示和使能功能的 3A、7V、超低压降稳压器 5-TO-220 -40 to 125
PMIC - 稳压器 - 线性 正 固定 1 输出 3A TO-220-5
得捷:
IC REG LINEAR 1.8V 3A TO220-5
立创商城:
正 Vin=7V Vout=1.8V 3A
德州仪器TI:
3-A, 7-V, ultra-low-dropout voltage regulator with power good & enable
贸泽:
LDO Voltage Regulators 3A Fast Ultra Low Dropout Linear Regulator 5-TO-220 -40 to 125
艾睿:
Use this LDO LP3853ET-1.8/NOPB linear regulator from Texas Instruments to vary your voltage levels to your desired level. Its typical dropout voltage at current is 0.039@300mA|0.39@3A V. It has an overall accuracy of ±1.5 %. This voltage regulation device&s;s single output can produce a current up to 3 A. With a small input voltage of 2.5 V and a max of 7 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Users like the load regulation of 0.08%Typ and line regulation of 0.02%Typ. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.05@300mA|0.45@3A V.
Chip1Stop:
LDO Regulator Pos 1.8V 3A 5-Pin5+Tab TO-220 Rail
罗切斯特:
LDO Regulator Pos 1.8V 3A 5-Pin5+Tab TO-220 Rail
DeviceMart:
IC REG LDO 1.8V 3A TO-220-5
输出接口数 1
输出电压 1.8 V
输出电流 3 A
静态电流 4.00 mA
输出电容类型 Ceramic
跌落电压 390 mV
调节输出数 1
输入电压Max 7 V
输入电压Min 2.5 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 2.5V ~ 7V
安装方式 Through Hole
引脚数 5

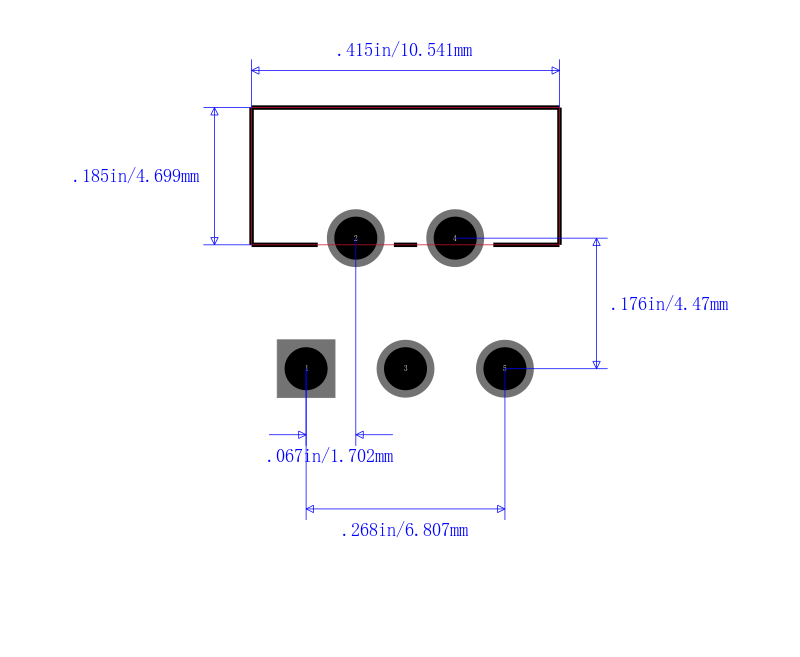

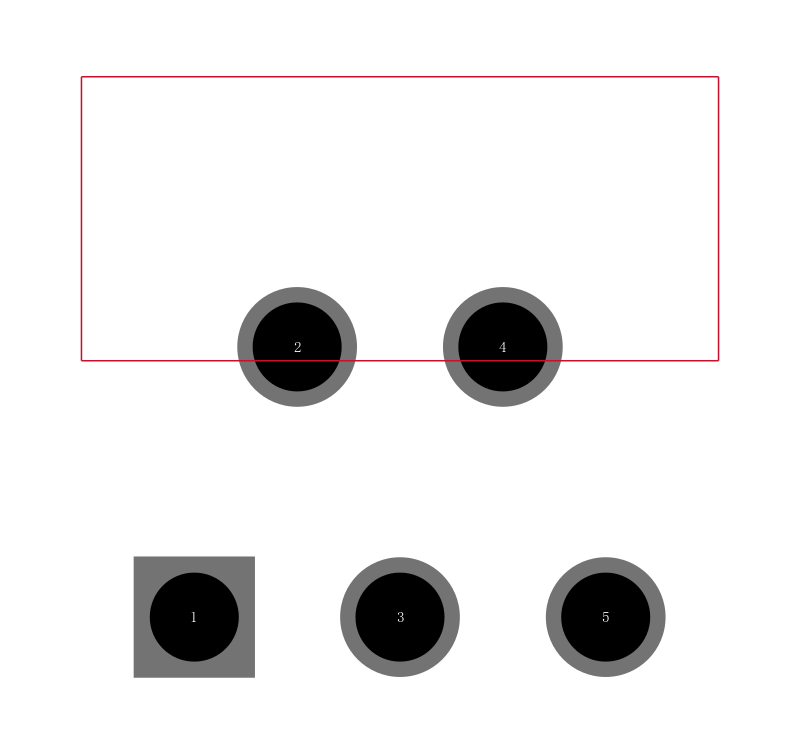

封装 TO-220-5
高度 8.64 mm
封装 TO-220-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3853ET-1.8/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3853ET-1.8 德州仪器 | 完全替代 | LP3853ET-1.8/NOPB和LP3853ET-1.8的区别 |
