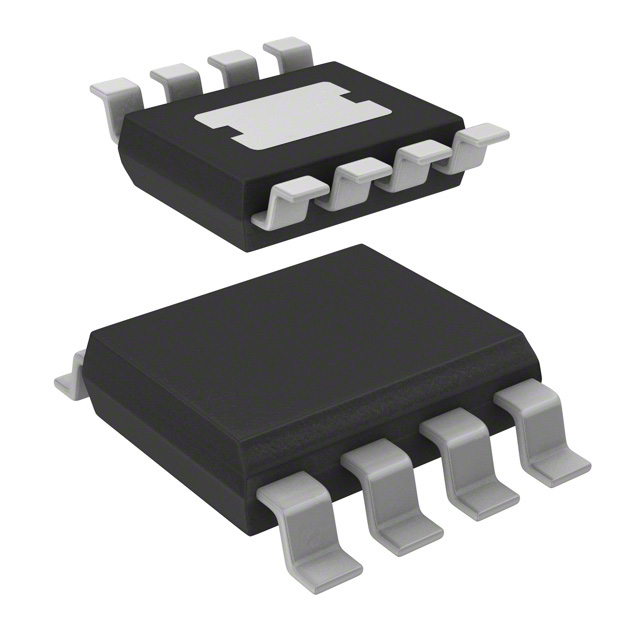

LINEAR TECHNOLOGY LT8302IS8E#PBF 芯片, 隔离反激式转换器, 12KHZ, SO-8
The is a monolithic micropower isolated Flyback Converter with 65V/3.6A switch. By sampling the isolated output voltage directly from the primary-side flyback waveform, the part requires no third winding or opto-isolator for regulation. The output voltage is programmed with two external resistors and a third optional temperature compensation resistor. Boundary mode operation provides a small magnetic solution with excellent load regulation. Low ripple burst mode operation maintains high efficiency at light load while minimizing the output voltage ripple. A 3.6A, 65V DMOS power switch is integrated along with all the high voltage circuitry and control logic. The LT8302 operates from an input voltage range of 2.8 to 42V and delivers up to 18W of isolated output power.
电源电压DC 2.80V min
输出接口数 1
输出电压 5.00 V
输出电流 3.6 A
针脚数 8
开关频率 12 kHz
输入电压Max 42 V
输入电压Min 2.8 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.8 V
电源电压Max 42 V
电源电压Min 2.8 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Automotive, Industrial, Medical, Power Management, Industrial, 电源管理, Automotive, Medical, 工业, 车用, 医用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT8302IS8E#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT8302MPS8E#PBF 凌力尔特 | 完全替代 | LT8302IS8E#PBF和LT8302MPS8E#PBF的区别 |
LT8302IS8E#TRPBF 凌力尔特 | 完全替代 | LT8302IS8E#PBF和LT8302IS8E#TRPBF的区别 |
LT8302HS8E#PBF 凌力尔特 | 类似代替 | LT8302IS8E#PBF和LT8302HS8E#PBF的区别 |
