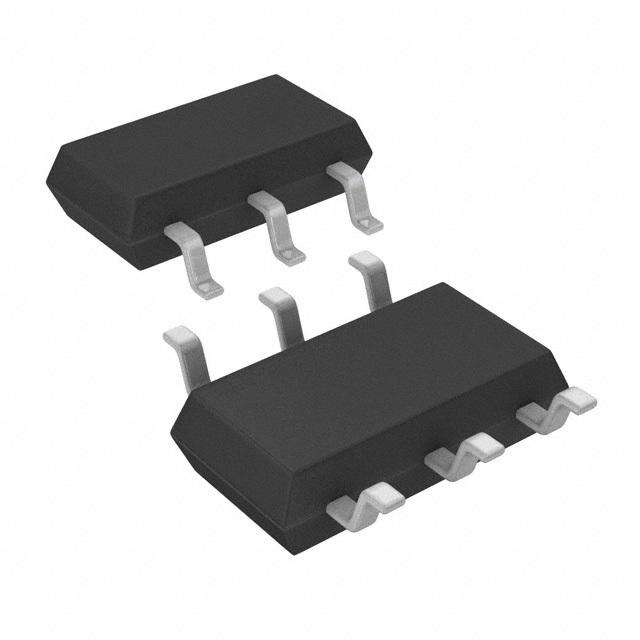

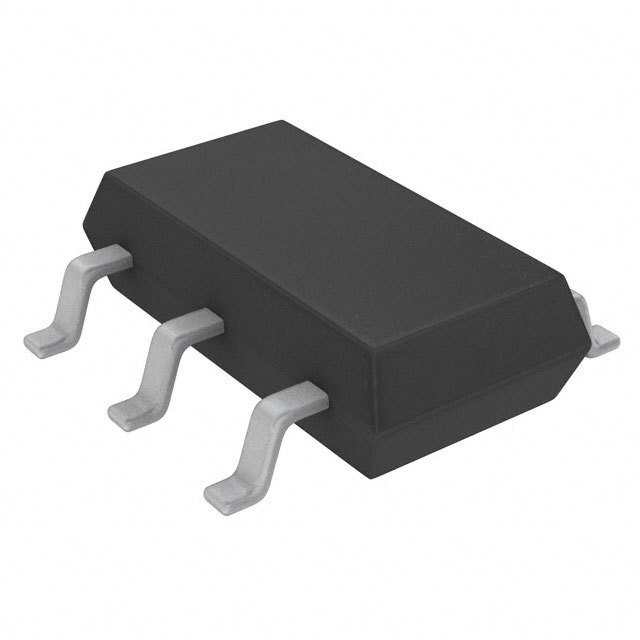

V-Ref Precision 3V 10mA Automotive 6Pin TSOT-23 T/R
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. Supply your circuit with sufficient power by implementing this, which does not exceed 38 V. With an output that has a voltage of 3 V, this is power management at its best. It has an initial accuracy of 0.1%. This voltage reference circuit supports series topology. At a load regulation of 20ppm/mA and line regulation of 5ppm/V a constant current can be produced at the output of your circuit. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It runs with a maximum temperature coefficient of 20ppm/°C. This voltage reference circuit has an operating temperature range of -55 °C to 125 °C.
容差 ±0.1 %
输出电压 3 V
输出电流 10 mA
供电电流 600 µA
输入电压Max 38 V
输出电压Min 3 V
输出电流Max 10 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
输入电压 3.5V ~ 36V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
封装 TSOT-23-6
工作温度 -55℃ ~ 125℃ TA
温度系数 ±20 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
