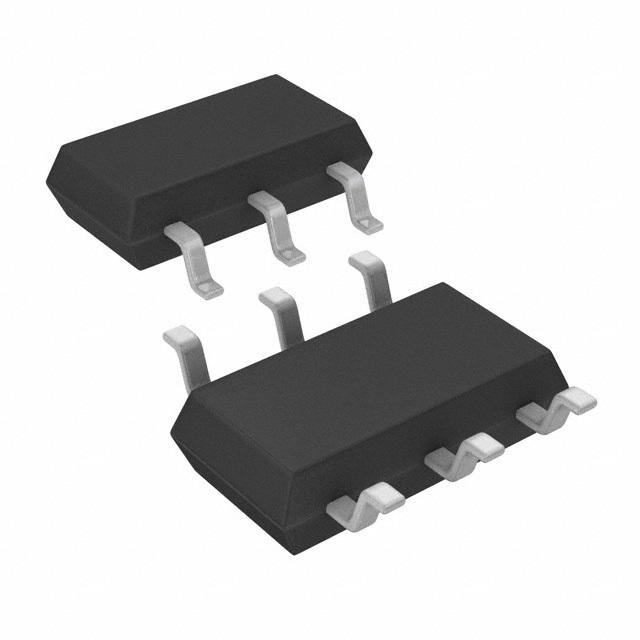

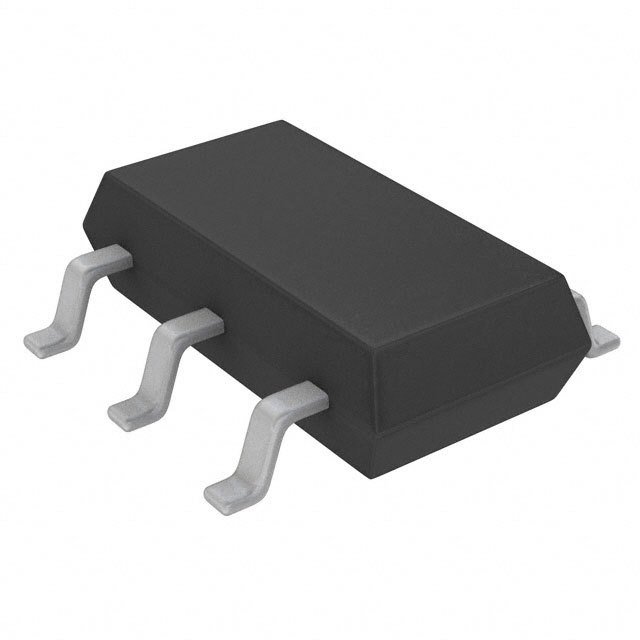

V-Ref Precision 5V 10mA 6Pin TSOT-23 T/R
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. It has an initial accuracy of 0.1%. This will operate at a maximum voltage of 38 V, making it easy to control the power in your circuit. With an output that has a voltage of 5 V, this is power management at its best. This voltage reference circuit supports series topology. By operating at a load regulation of 20ppm/mA and line regulation of 5ppm/V you can provide a constant voltage at your output. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It runs with a maximum temperature coefficient of 20ppm/°C. This voltage reference circuit has a minimum operating temperature of -55 °C and a maximum of 125 °C.
容差 ±0.1 %
输出电压 5 V
输出电流 10 mA
供电电流 600 µA
通道数 1
输入电压Max 38 V
输出电压Min 5 V
输出电流Max 10 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
输入电压 5.5V ~ 36V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
高度 0.9 mm
封装 TSOT-23-6
工作温度 -55℃ ~ 125℃ TA
温度系数 ±20 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT6654BMPS6-5#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT6654BMPS6-5#TRPBF 凌力尔特 | 完全替代 | LT6654BMPS6-5#TRMPBF和LT6654BMPS6-5#TRPBF的区别 |
LT6654BHS6-5#TRMPBF 凌力尔特 | 类似代替 | LT6654BMPS6-5#TRMPBF和LT6654BHS6-5#TRMPBF的区别 |
