开关稳压器 6A Boost/Inv DC/DC Conv w/ Fault Prot
Adjust the voltage level of your devices with this DC to DC converter from . This converter"s single output can produce a current up to 6 A. Use this part at voltages between 2.5 V and 16 V. By operating at a line regulation of 0.05%/V you can provide a constant voltage at your output. You can operate this at a switching frequency of 175 to 2800 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 40 V
输出电流 6 A
静态电流 1.9 mA
开关频率 200kHz ~ 2.5MHz
输入电压Max 16 V
输入电压Min 2.5 V
输出电压Min 1.215 V
输出电流Max 6 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.5V ~ 16V
安装方式 Surface Mount
引脚数 20

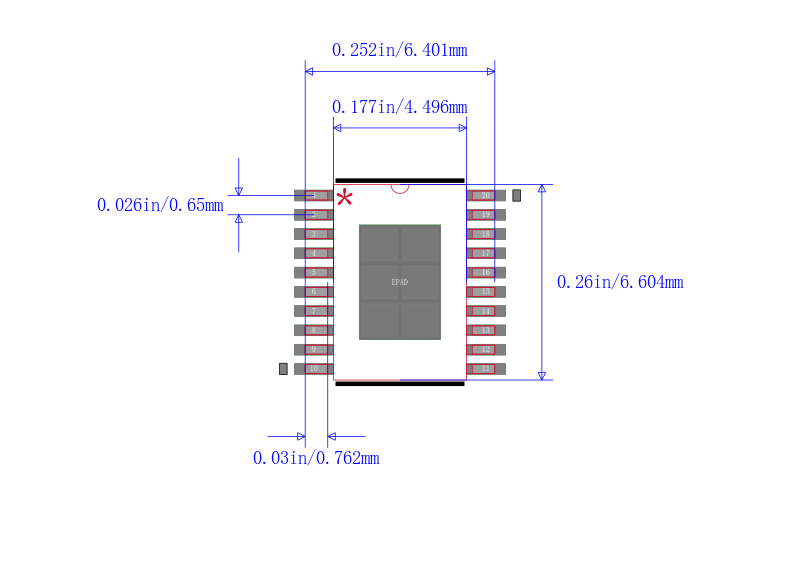

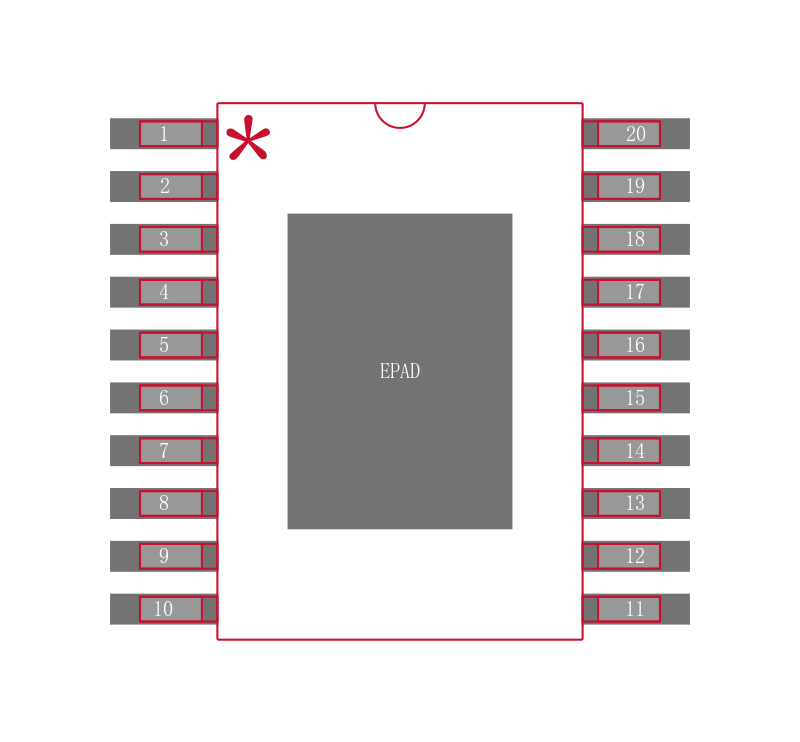

封装 TSSOP-20
高度 1.05 mm
封装 TSSOP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
