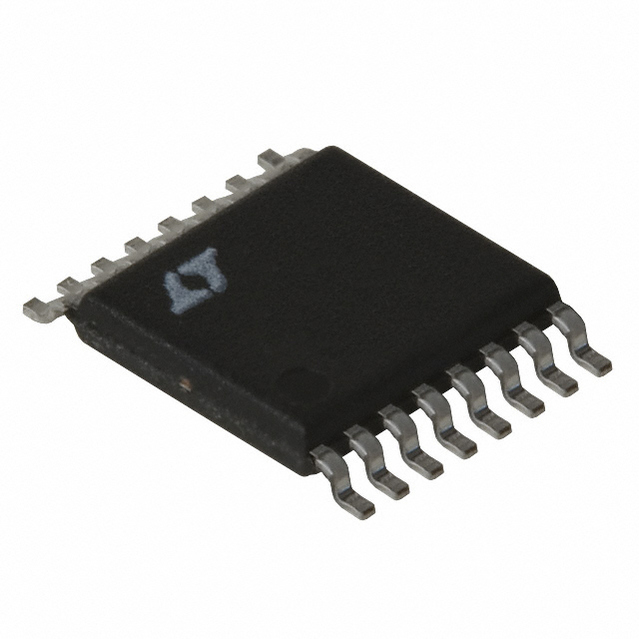

LINEAR TECHNOLOGY LT3724IFE#PBF 直流/直流控制器, 电流模式, 4V至60V, 1路输出, 升压, 降压, 反相, SEPIC, 225kHz, TSSOP-16
The is a DC/DC Controller offers a wide 4 to 60V input range 7.5V minimum startup voltage and can implement step-down, step-up, inverting and SEPIC topologies. The LT3724 includes burst mode operation, which reduces quiescent current below 100µA and maintains high efficiency at light loads. An internal high voltage bias regulator allows for simple biasing and can be back driven to increase efficiency. Additional features include fixed frequency current-mode control for fast line and load transient response, a gate driver capable of driving large N-channel MOSFETs, a precision under voltage lockout function, 10µA shutdown current, short-circuit protection and a programmable soft-start function that directly controls output voltage slew rates at startup which limits inrush current, minimizes overshoot and facilitates supply sequencing.
电源电压DC 4.00V min
输出接口数 1
输出电压 1.23V ~ 36V
输出电流 5 A
针脚数 16
开关频率 225 kHz
占空比 100 %
输入电压Max 60 V
输入电压Min 4 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4V ~ 60V
电源电压Max 60 V
电源电压Min 4 V
输入电压 4V ~ 60V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
高度 1.1 mm
封装 TSSOP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 电源管理, Automotive, 工业, 通信与网络, 车用, Power Management, Communications & Networking, Industrial, 航空电子, Avionics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3724IFE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3724EFE#PBF 凌力尔特 | 完全替代 | LT3724IFE#PBF和LT3724EFE#PBF的区别 |
LT3724IFE#TRPBF 凌力尔特 | 类似代替 | LT3724IFE#PBF和LT3724IFE#TRPBF的区别 |
LT3724MPFE#TRPBF 凌力尔特 | 类似代替 | LT3724IFE#PBF和LT3724MPFE#TRPBF的区别 |
