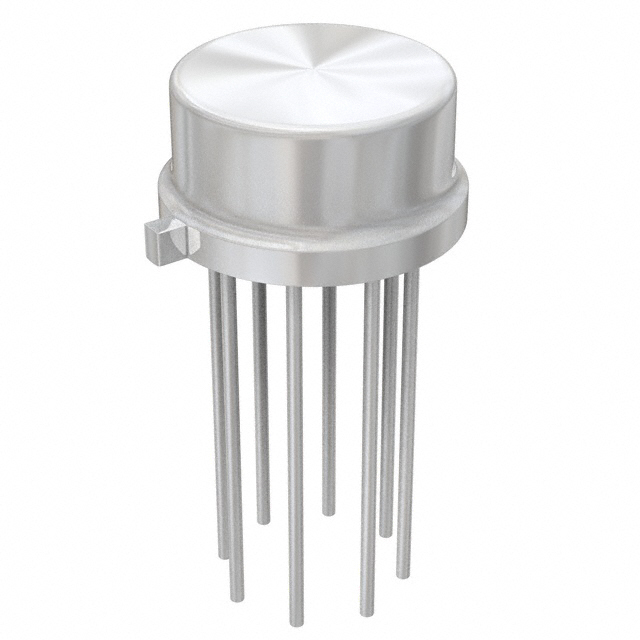

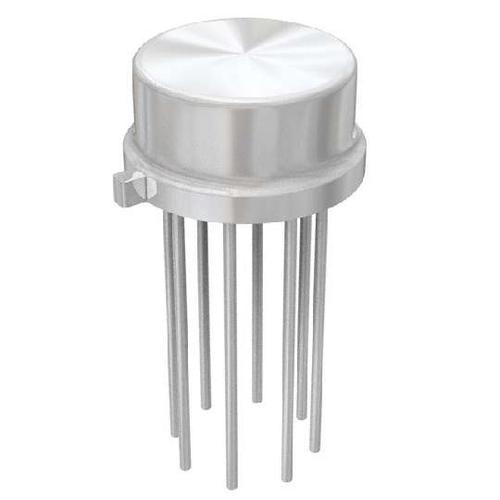

LM723H/NOPB

TEXAS INSTRUMENTS  LM723H/NOPB  芯片, 稳压器 可调 +2/37V

PMIC - 稳压器 - 线性 正 可调式 输出 150mA TO-100-10

得捷:
IC REG LIN POS ADJ 150MA TO100

立创商城:
LM723H/NOPB

德州仪器TI:
150 mA Adjustable Output Linear Regulator / LDO

e络盟:
线性稳压器, 正压, 可调节, 40V主输入, 2-37V/150 mA/1输出, TO-100-10

艾睿:
Keep calm and stay stable by implementing this LDO LM723H/NOPB linear regulator developed by Texas Instruments. This device has a maximum power dissipation of 800 mW. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 9.5 V that does not exceed 40 V. With an adjustable output that has a voltage of 2 to 37 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.15% and line regulation of 0.2%. Its maximum power dissipation is 800 mW. This voltage regulation device has a minimum operating temperature of -55 °C and a maximum of 150 °C. Its polarity is positive.

安富利:
Standard Regulator Pos 2V to 37V 0.15A 10-Pin TO-100 Box

Chip1Stop:
LDO Regulator Pos 2V to 37V 0.15A 10-Pin TO-100 Box

Verical:
LDO Regulator Pos 2V to 37V 0.15A 10-Pin TO-100 Box

Newark:
# TEXAS INSTRUMENTS  LM723H/NOPB  Linear Voltage Regulator, Adjustable, 9.5V to 40V input, 2V to 37V/150 mA out, TO-100-10

DeviceMart:
IC REG LDO ADJ .15A TO100-10
