LINEAR TECHNOLOGY LTC3413EFE#PBF 直流-直流开关降压, 逐步递降稳压器, 可调, 2.25V-5.5V输入, 3A输出, 2MHz, TSSOP-16
The is a high-efficiency monolithic synchronous step-down DC-to-DC Converter utilizing a constant frequency and current-mode architecture. It operates from an input voltage range of 2.25 to 5.5V and provides a regulated output voltage equal to 0.5VREF while sourcing or sinking up to 3A of output current. An internal voltage divider reduces component count and eliminates the need for external resistors by dividing the reference voltage in half. The internal synchronous power switch with 85mR on-resistance increases efficiency and eliminates the need for an external Schottky diode. Switching frequency up to 2MHz are set by an external resistor. Forced-continuous operation in the LTC3413 reduces noise and RF interference. Fault protection is provided by an overcurrent comparator that limits output current during both sourcing and sinking operations. Adjustable compensation allows the transient response to be optimized over a wide range of loads and output capacitors.
频率 2 MHz
输出接口数 1
输出电压 0.7V ~ 5.5V
输出电流 3 A

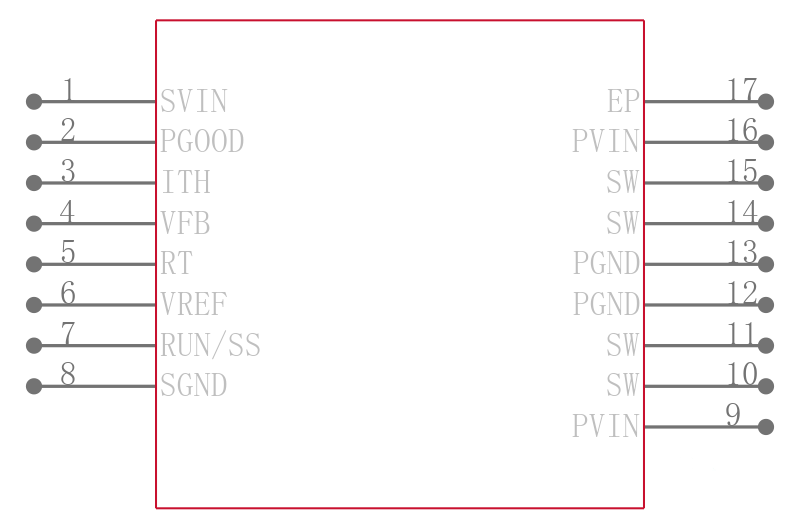

针脚数 16
开关频率 1 MHz
输入电压Max 5.5 V
输入电压Min 2.25 V
输出电压Max 5.5 V
输出电压Min 1.125 V
输出电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.25 V
电源电压Max 5.5 V
电源电压Min 2.25 V
输入电压 2.25V ~ 5.5V
安装方式 Surface Mount
引脚数 16

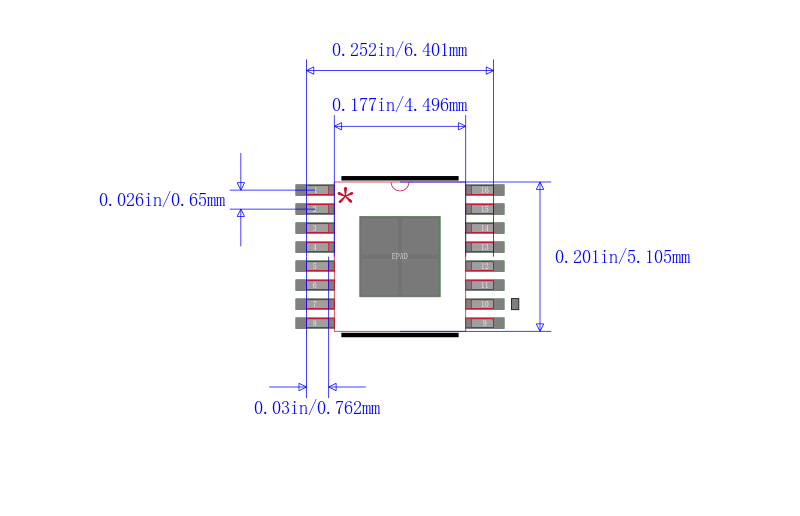

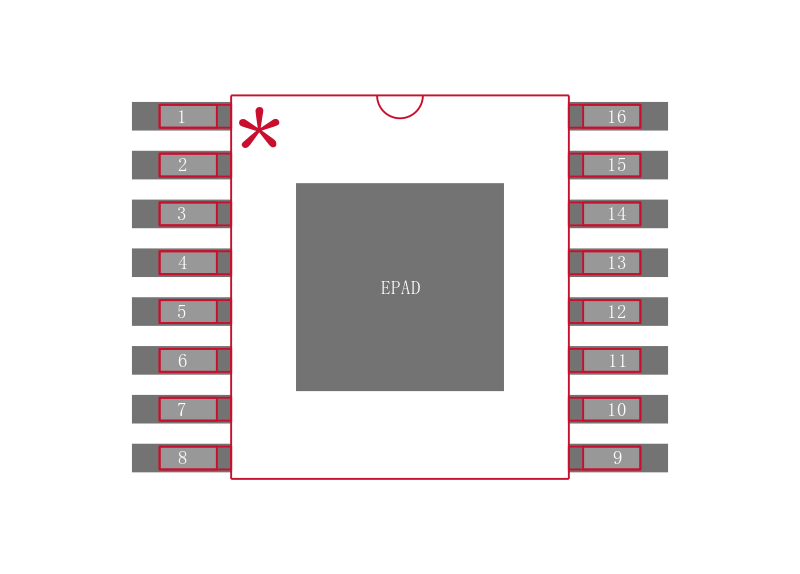

封装 TSSOP-16
长度 4.9 mm
宽度 4.3 mm
高度 0.95 mm
封装 TSSOP-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Power Management, 通信与网络, Communications & Networking, 计算机和计算机周边, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3413EFE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3413EFE#TRPBF 凌力尔特 | 完全替代 | LTC3413EFE#PBF和LTC3413EFE#TRPBF的区别 |
