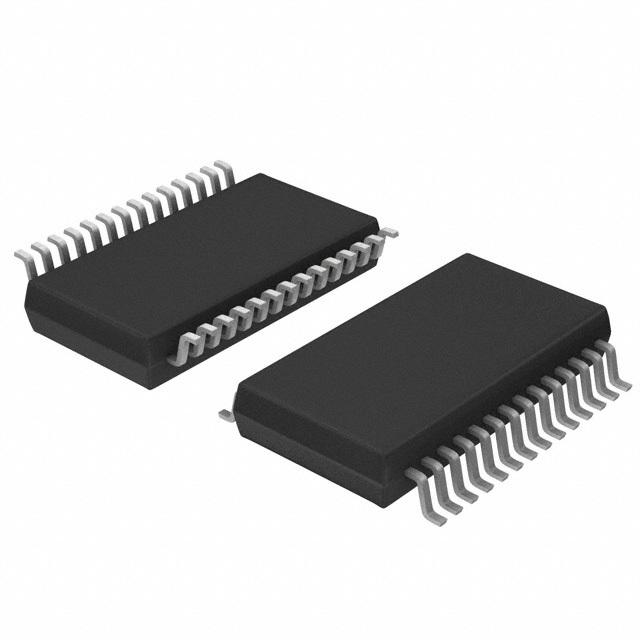

LTC3766EGN#PBF

LINEAR TECHNOLOGY  LTC3766EGN#PBF  直流/直流控制器, 高效, 多相, 5V至10V, 1路输出, 降压, 500kHz, SSOP-28

The is a PolyPhase-capable Secondary-Side Controller for synchronous forward converters. When used in conjunction with the LTC3765 active-clamp forward controller and gate driver, the part creates a complete isolated power supply that combines the power of multiphase operation with the speed of secondary-side control. It has been designed to simplify the design of active clamp forward converters. Working in concert with the controller forms a robust, self-starting converter that eliminates the need for the separate bias regulator that is commonly used in secondary-side control applications. A precision current-limit coupled with clean start-up into a pre-biased load make the LTC3766 an excellent choice for high-power battery charger applications. It provides extensive remote sensing and output protection features, while Direct Flux Limit guarantees no transformer saturation without compromising transient response.

.

Direct Flux Limit™ guarantees no saturation

.

Fast and accurate average current limit

.

Clean start-up into pre-biased output

.

Secondary-side control for fast transient response

.

Simple, self-starting architecture

.

Synchronous MOSFET reverse current limit

.

PolyPhase® operation eases high-power design

.

True remote sense differential amplifier

.

Remote sense reverse protection

.

High voltage linear regulator controller

.

Internal LDO powers gate drive from VOUT

.

Overtemperature/overvoltage protection
