降压开关稳压器, 固定, 5V-25V输入, 5V和4.5A输出, SOIC-8
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 4.5 A. Using the part will provide the power your application needs by requiring a voltage only of 5 V and not exceeding a voltage of 25 V. With a fixed output that has a voltage of 5 V, this is power management at its best. At a line regulation of 0.03%/V your circuit is capable of maintaining a constant voltage level at your output. It has a switching frequency of 540 kHz. This converter has a minimum operating temperature of 0 °C and a maximum of 125 °C.
频率 500 kHz
输出接口数 1
输出电压 5 V
输出电流 4.5 A
针脚数 8
开关频率 500 kHz
拓扑结构 Buck
输入电压Max 25 V
输入电压Min 5 V
输出电压Max 5 V
输出电压Min 5 V
输出电流Max 4.5 A
工作温度Max 125 ℃
工作温度Min 0 ℃
电源电压 5 V
电源电压Max 25 V
电源电压Min 5 V
输入电压 5V ~ 25V
安装方式 Surface Mount

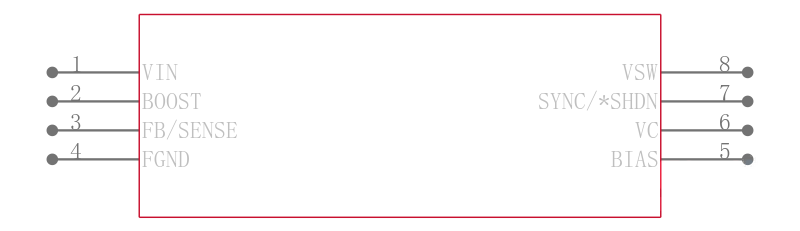

引脚数 8

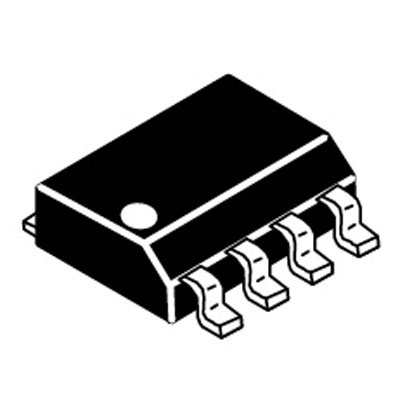

封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 0℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1374CS8-5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1374CS8-5#TRPBF 凌力尔特 | 类似代替 | LT1374CS8-5#PBF和LT1374CS8-5#TRPBF的区别 |
ISL854102DEMO1Z 瑞萨电子 | 功能相似 | LT1374CS8-5#PBF和ISL854102DEMO1Z的区别 |
ISL854102EVAL1Z 瑞萨电子 | 功能相似 | LT1374CS8-5#PBF和ISL854102EVAL1Z的区别 |
