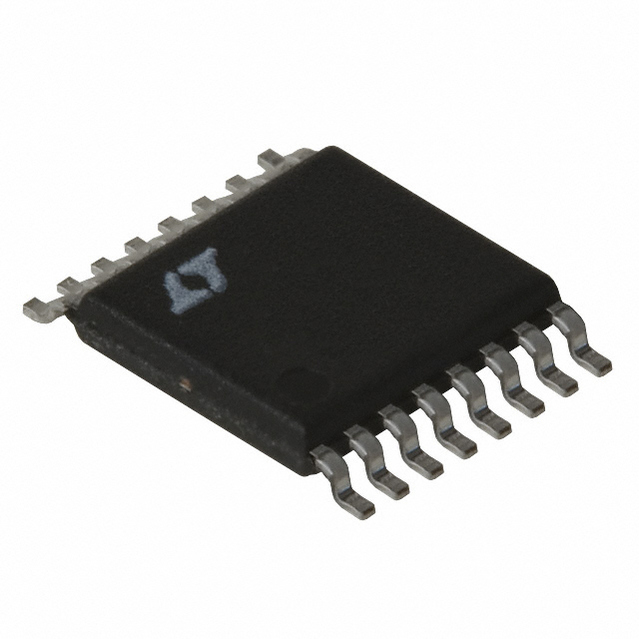

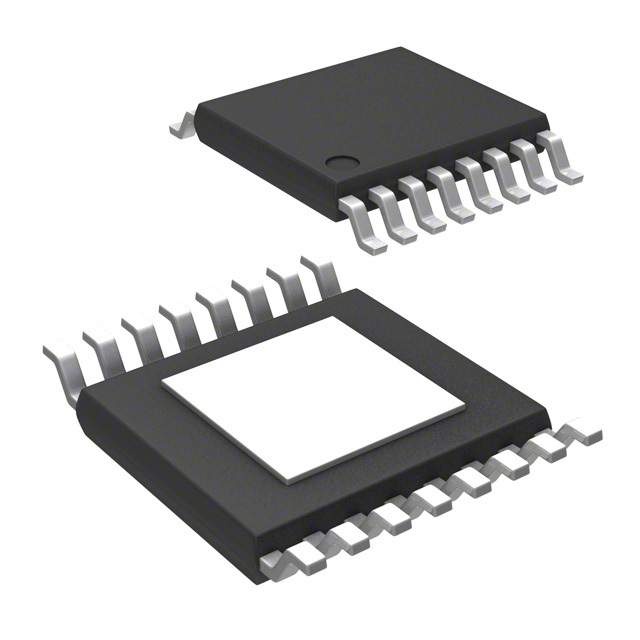

Conv DC-DC Single Step Down 2.625V to 5.5V 16Pin TSSOP EP T/R
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 2.5 A. With a small input voltage of 2.625 V and a max of 5.5 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 0.8 to 5 V, this is power management at its best. This converter is 95 % efficient. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.2% and line regulation of 0.2%/V. This part offers a switching frequency of 300 to 4000 kHz in order to work properly. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 0.8V ~ 5V
输出电流 2.5 A
开关频率 950 kHz
输入电压Max 5.5 V
输入电压Min 2.625 V
输出电压Max 5 V
输出电压Min 0.8 V
输出电流Max 2.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.625 V
输入电压 2.63V ~ 5.5V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3412EFE#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3412EFE#TR 凌力尔特 | 完全替代 | LTC3412EFE#TRPBF和LTC3412EFE#TR的区别 |
LTC3412EFE#PBF 凌力尔特 | 类似代替 | LTC3412EFE#TRPBF和LTC3412EFE#PBF的区别 |
