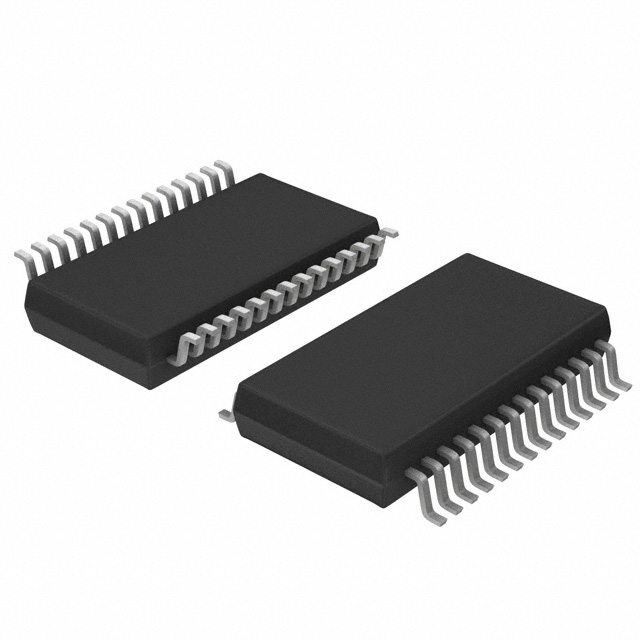

LINEAR TECHNOLOGY LTC3858EGN-1#PBF DC-DC Controller, 2-Phase, 4V to 38V, 2Outputs, Synchronous Buck, 850kHz, SSOP-28
Use the synchronous step down DC voltage controller from to step up and down your DC voltage. Its output produces a current of 25|25 A. With an output that has a voltage of 0.8 to 24 V, this is power management at its best. This DC voltage controller has 2 outputs. This DC voltage controller has an input voltage of 4 to 38 V. It has a switching frequency of 50 to 900 kHz. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 4.00V min
输出接口数 2
输出电压 0.8V ~ 24V
输出电流 25 A
开关频率 850 kHz
占空比 99.4 %
输入电压Max 38 V
输入电压Min 4 V
最大占空比 0.994
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4V ~ 38V
电源电压Max 38 V
电源电压Min 4 V
输入电压 4V ~ 38V
安装方式 Surface Mount
引脚数 28
封装 SSOP-28
封装 SSOP-28
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3858EGN-1#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3858EGN-1#TRPBF 凌力尔特 | 类似代替 | LTC3858EGN-1#PBF和LTC3858EGN-1#TRPBF的区别 |
