开关稳压器 Dual Synchronous 3A/1A or 2A/2A,Configurable Step Down DC/DC Regulator
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s 2 outputs can produce a current up to 2 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.25 V that does not exceed 5.5 V. With an adjustable output that has a voltage of 0.6 to 5 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.2% and line regulation of 0.2%/V. This converter is 96 % efficient. Its switching regulator has a frequency of 2250|750 to 4000 kHz. This converter has an operating temperature range of -40 °C to 85 °C.
输出接口数 2
输出电压 0.6V ~ 5V
输出电流 1A, 2A
开关频率 4 MHz
输入电压Max 5.5 V
输入电压Min 2.25 V
输出电压Max 5 V
输出电压Min 0.6 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.25V ~ 5.5V
安装方式 Surface Mount
引脚数 28

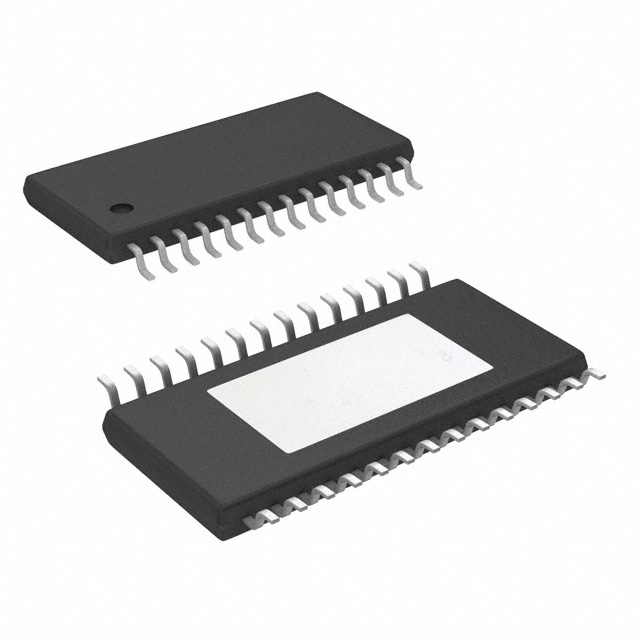

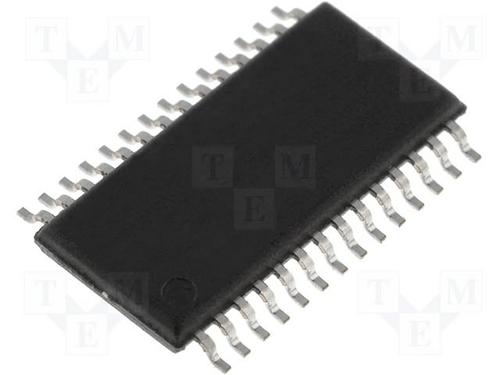

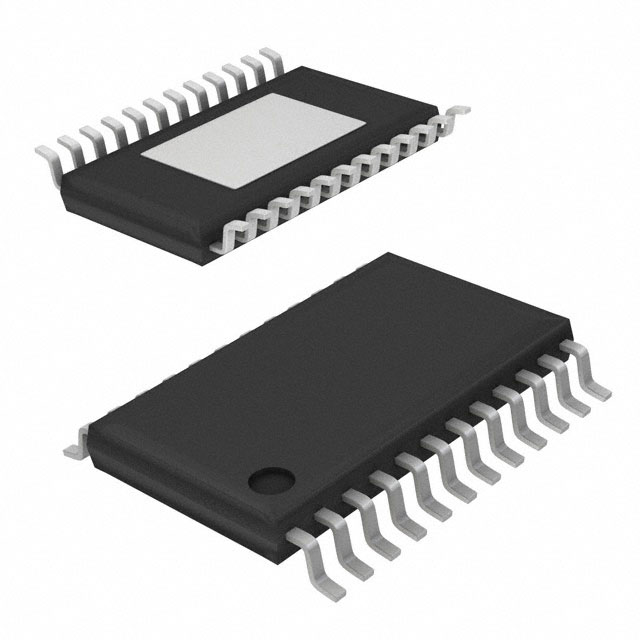

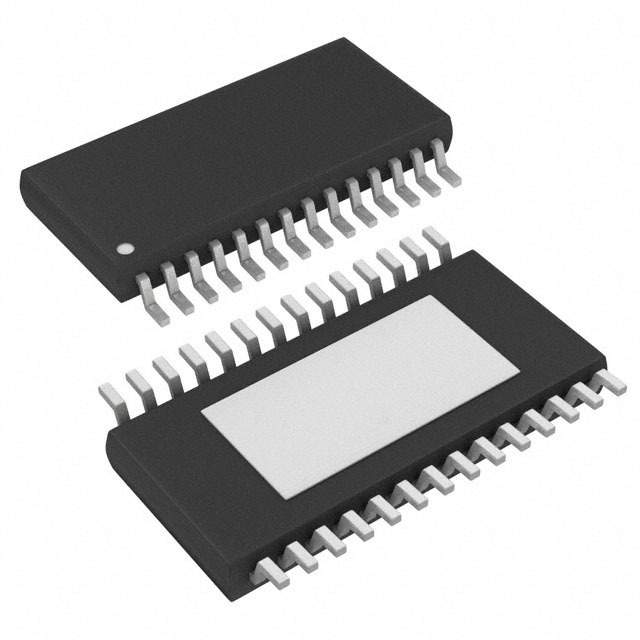

封装 TSSOP-28
高度 1.05 mm
封装 TSSOP-28
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3546EFE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3546IFE#PBF 凌力尔特 | 类似代替 | LTC3546EFE#PBF和LTC3546IFE#PBF的区别 |
LTC3546EFE#TRPBF 凌力尔特 | 类似代替 | LTC3546EFE#PBF和LTC3546EFE#TRPBF的区别 |
LTC3546IFE#TRPBF 凌力尔特 | 功能相似 | LTC3546EFE#PBF和LTC3546IFE#TRPBF的区别 |
