LT8697IUDD#PBF

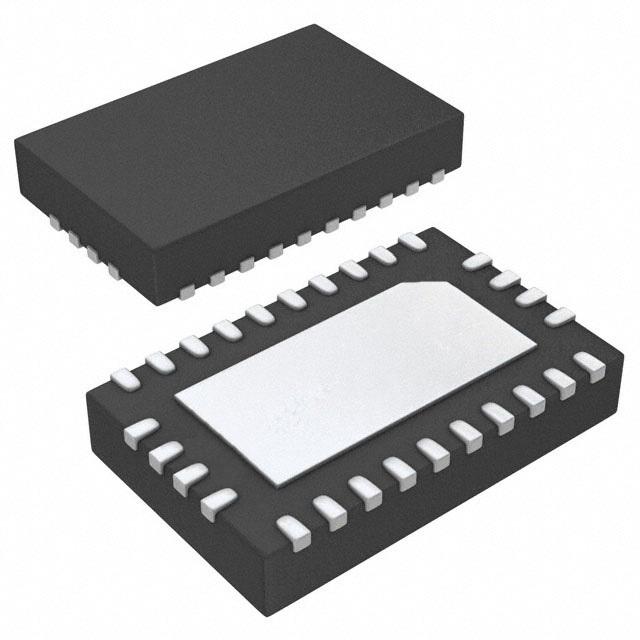

LINEAR TECHNOLOGY  LT8697IUDD#PBF  直流-直流开关降压逐步递减稳压器, 可调, 5V-42V输入, 5V-5.25V输出, 2.5A输出, QFN-24

The is a compact high-efficiency high-speed synchronous monolithic step-down Switching Regulator designed to power 5V USB applications. A precise output voltage and programmable cable drop compensation maintain accurate 5V regulation at the USB socket connected to the end of a long cable. Forced continuous operation allows the LT8697 to sink current, further enhancing accurate 5V regulation during load transients. Accurate and programmable output current limit, a power good indicator pin and an output current monitor pin improve system reliability and safety, allow the user to implement latch-OFF or auto-retry functionality and can eliminate the need for a USB switch IC. Dual feedback allows regulation on the output of a USB switch and limits cable drop compensation to a maximum of 5.8V output, protecting USB devices during fault conditions. Thermal shutdown provides additional protection by limiting power dissipation in the IC during an over-temperature fault.

.

Programmable cable drop compensation

.

Programmable output current limit

.

Output current monitor

.

Dual input feedback permits regulation on output of USB switch

.

Forced continuous mode for fast load step response

.

Accurate 5V output - ±1.3% Over full temperature range

.

450mV at 2.1A Low dropout under all conditions

.

45ns Fast minimum switch-ON time
