LINEAR TECHNOLOGY LTC3803MPS6#TRMPBF DC-DC Controller, Constant Frequency, Current Mode, 5.7V to 8V, 1 Output, Flyback, 240kHz, TSOT-23-6
Use the flyback DC voltage controller from to step up and down your DC voltage. This DC voltage controller has single output. Its output produces a current of 1Max A. This DC voltage controller has an input voltage of 9.2 to 75 V. Its switching regulator has a frequency of 240 kHz. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This DC voltage controller has a minimum operating temperature of -55 °C and a maximum of 150 °C.
电源电压DC 5.70V min
输出接口数 1
输出电压 9.2.75 V
输出电流 2 A
开关频率 200 kHz
占空比 90 %
输入电压Max 75 V
输入电压Min 9.2 V
输出电流Max 1 A
最大占空比 0.8
工作温度Max 150 ℃
工作温度Min -55 ℃
电源电压 5.7V ~ 8V
电源电压Max 8 V
电源电压Min 5.7 V
输入电压 9.2.75 V
安装方式 Surface Mount
引脚数 6

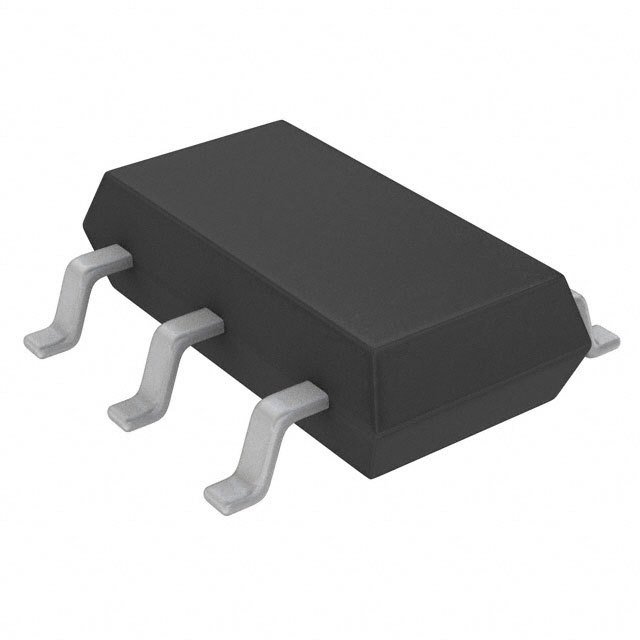

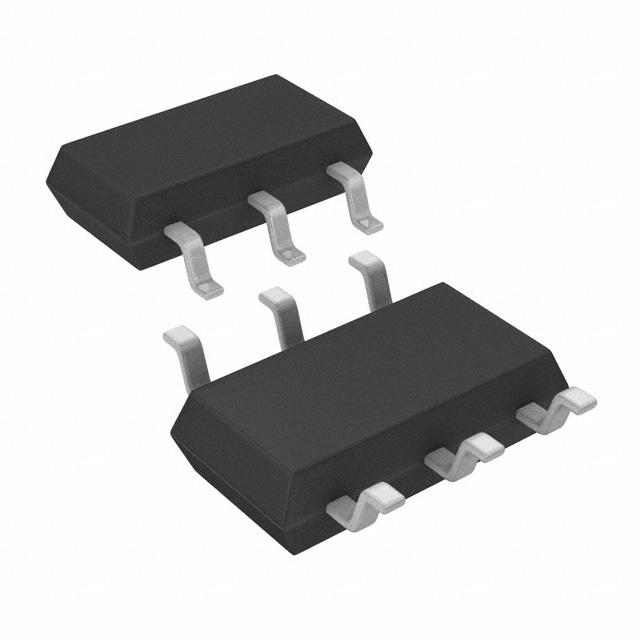

封装 TSOT-23-6
封装 TSOT-23-6
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Unknown

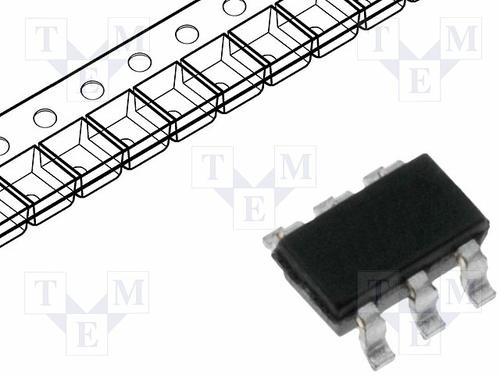

包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3803MPS6#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3803MPS6#TRPBF 凌力尔特 | 完全替代 | LTC3803MPS6#TRMPBF和LTC3803MPS6#TRPBF的区别 |
