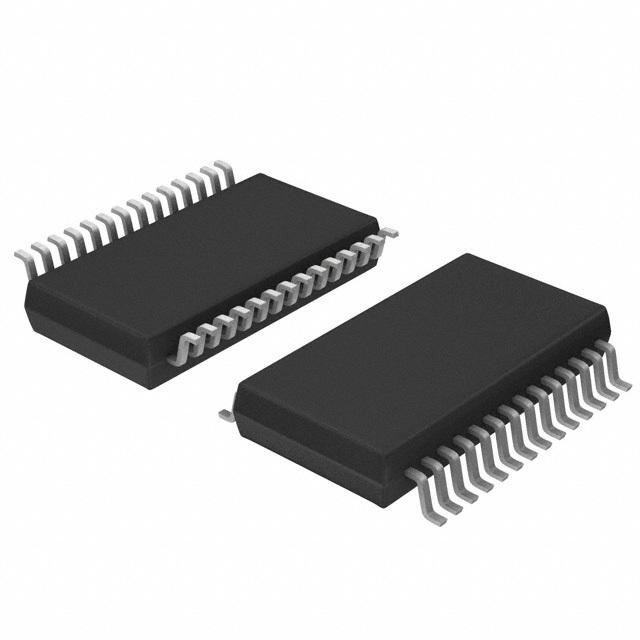

LINEAR TECHNOLOGY LTC4228IGN-1#PBF 芯片, 热插拔控制器, 理想二极管, 18V, 28SSOP
The is a Hot Swap Controller offers ideal diode and Hot Swap functions for two power rails by controlling two external N-channel MOSFETs in each rail. MOSFETs acting as ideal diodes replace two high power Schottky diodes and the associated heat sinks, saving power and board area. Hot Swap control MOSFETs allow boards to be safely inserted and removed from a live backplane by limiting inrush current. The supply output is also protected against short-circuit faults with a fast acting current limit and internal timed circuit breaker. The LTC4228 regulates the forward voltage drop across the external MOSFETs and sense resistor to ensure smooth current transfer from one supply to the other without oscillation. The ideal diodes turn on quickly to reduce the load voltage droop during supply switch-over. If the input supply fails or is shorted, a fast turn-off minimizes reverse-current transients.
电源电压DC 3.00V min
输入电压DC 12.0 V
供电电流 2.5 mA
通道数 2
针脚数 28
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.9V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
输入电压 12 V
安装方式 Surface Mount
引脚数 28
封装 SSOP-28
高度 1.5 mm
封装 SSOP-28
工作温度 -40℃ ~ 85℃
包装方式 Each
制造应用 Power Management, 通信与网络, 通用, 电源管理, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC4228IGN-1#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC4228IGN-1#TRPBF 凌力尔特 | 完全替代 | LTC4228IGN-1#PBF和LTC4228IGN-1#TRPBF的区别 |
