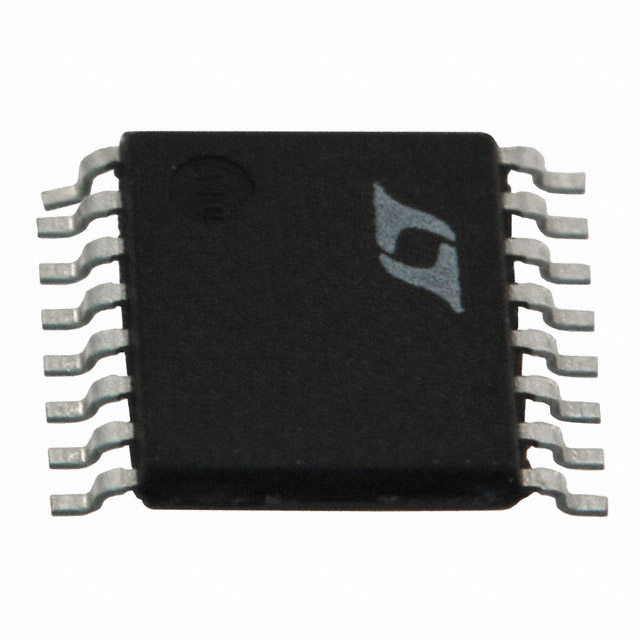

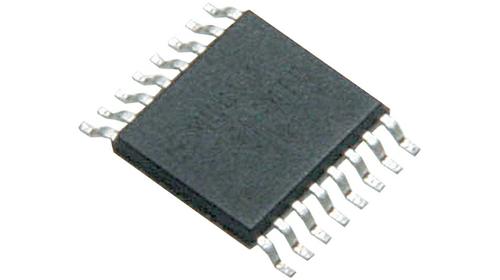

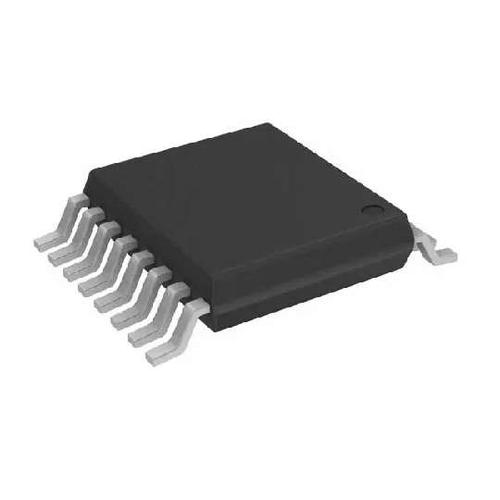

LT3083EFE#PBF

LINEAR TECHNOLOGY  LT3083EFE#PBF  电压稳压器, LDO, 可调, 1.2V至23V输入, 240mV压差, 0V至23V/3A输出, TSSOP-16

The is a low-dropout Linear Regulator that can be paralleled to increase output current or spread heat on surface mounted boards. Architected as a precision current source and voltage follower, this new regulator finds use in many applications requiring high current, adjustability to zero and no heat sink. The device also brings out the collector of the pass transistor to allow low-dropout operation-down to 310mV - when used with multiple supplies. A key feature of the LT3083 is the capability to supply a wide output voltage range. By using a reference current through a single resistor, the output voltage is programmed to any level between zero and 23V. The LT3083 is stable with 10µF of capacitance on the output and the IC is stable with small ceramic capacitors that do not require additional ESR as is common with other regulators. Internal protection circuitry includes current limiting and thermal limiting.

.

Outputs may be paralleled for higher current and heat spreading

.

Single resistor programs output voltage

.

Current limit with fold-back and overtemperature protection

.

50µA Set pin current - 1% Initial accuracy

.

<1mV Load regulation

.

<0.001%/V Line regulation
