LB1976-E

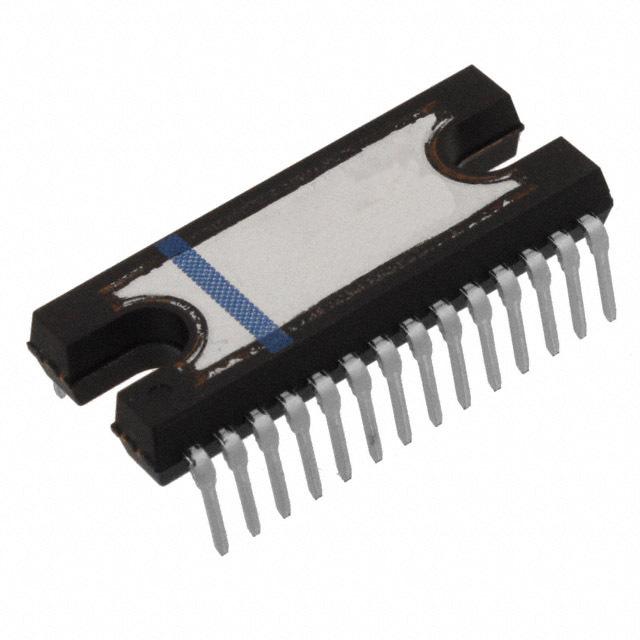

3-Phase Brushless Motor Driver, PDIP30 / DIP30SD 400 mil, 20-FNFLD

A 3-phase brushless motor driver IC suited for use in direct PWM driving of DC fan motors for air conditioners, water heaters and other similar equipment. Since a shunt regulator circuit is built-in, single power supply operation sharing the same power supply for the motor is supported.

Features

---

 |

.

Withstand voltage 60 V, output current 2.5 A

.

Direct PWM drive output

.

3 integrated output top-side diodes

.

Integrated current limiter

.

Integrated FG output circuit
