LTC4219IDHC-12#PBF

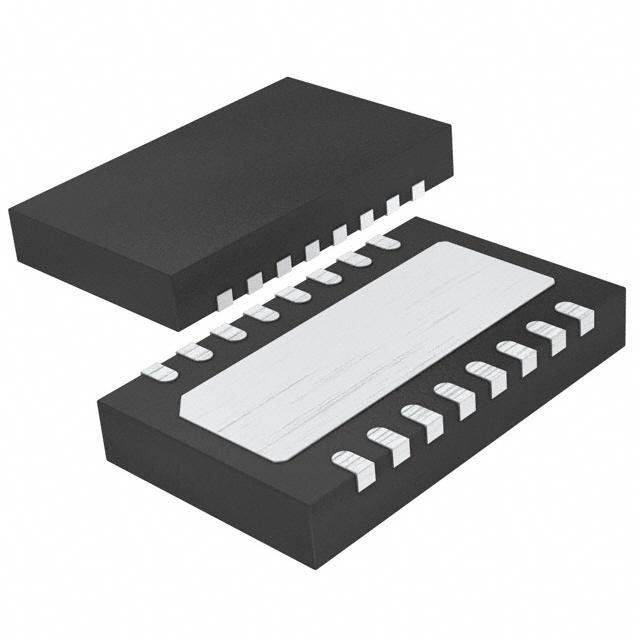

LINEAR TECHNOLOGY  LTC4219IDHC-12#PBF  芯片, 热插拔控制器, 12V, 5A, 16DFN

The is an integrated Hot Swap Controller allows a board to be safely inserted and removed from a live backplane. The part integrates a Hot Swap controller, power MOSFET and current sense resistor in a single package for small form factor applications. The LTC4219 provides separate inrush current control and a 10% accurate 5.6A current limit with foldback current limiting. The current limit threshold can be adjusted dynamically using an external pin. Additional features include a current monitor output that amplifies the sense resistor voltage for ground referenced current sensing and a MOSFET temperature monitor output. Thermal limit and power good monitoring are also provided. The power good detection level and foldback current limit profile are internally preset for 12V applications.

.

33mR MOSFET with RSENSE

.

10% Accurate current limit

.

Current and temperature monitor outputs

.

Overtemperature protection

.

Adjustable current limit timer before fault

.

Power good and fault outputs

.

Adjustable inrush current control
