LLS2G151MELZ

LS 系列 150 uF 400 V 20 % 扣接 铝电解电容

铝电解器 径向，Can - 卡入式 - 85°C 时为 3000 小时

立创商城:
150uF ±20% 400V

得捷:
CAP ALUM 150UF 20% 400V SNAP

艾睿:

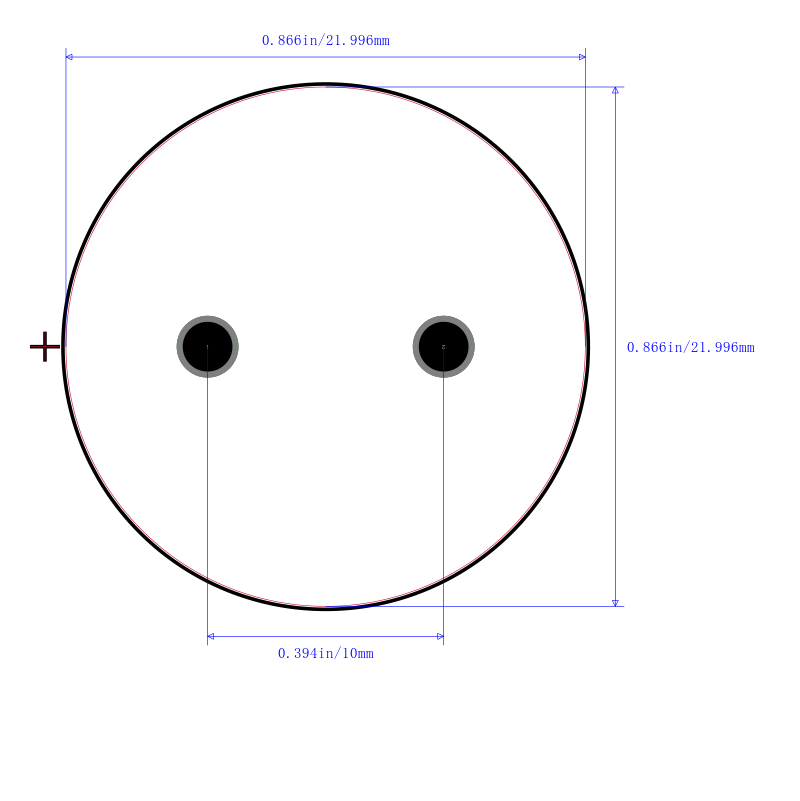

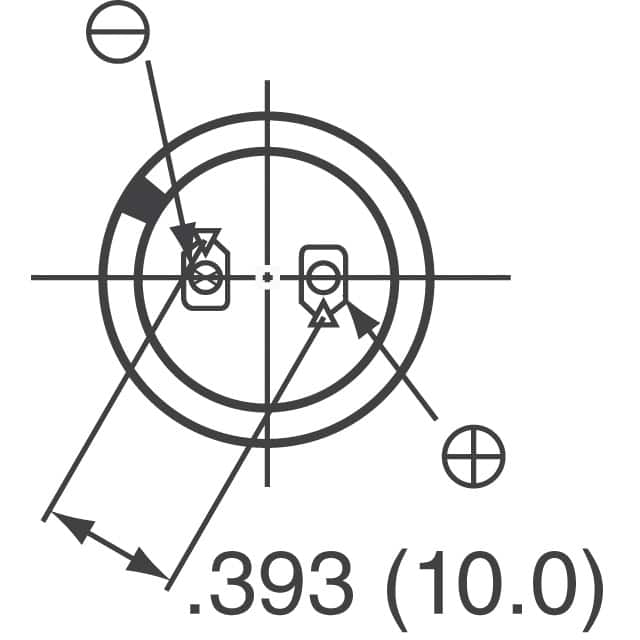

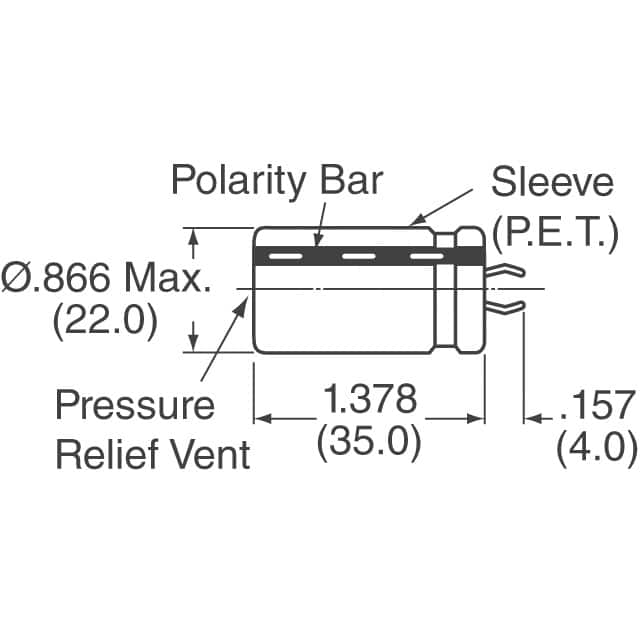

This electrolytic LLS2G151MELZ aluminum capacitor from Nichicon has a relatively high equivalent series resistance which allows it to generate high heat for a given current level. It can withstand a voltage of 400 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. Its leakage current is 730@5Min μA. Its capacitance value is 150uF. It has a tolerance of 20%. The LLS2G151MELZ aluminum electrolytic capacitor has a snap-in termination style. This product is 35 mm tall with a diameter of 22 mm.

Allied Electronics:
Capacitor; Al Electrolytic; Cap 150 uF; Tol 20%; Vol-Rtg 400 VDC; Snap-In; 22x35mm

安富利:
Cap Aluminum 150uF 400V 20% 22 X 35mm 10mm 1240mA 3000 hr 85°C Bulk

TME:
Capacitor: electrolytic; THT; 150uF; 400VDC; Ø22x35mm; ±20%; 3000h

Verical:
Cap Aluminum Lytic 150uF 400V 20% 22 X 35mm Snap-In 10mm 1240mA 3000h 85C Bulk

Newark:
# NICHICON  LLS2G151MELZ  Electrolytic Capacitor, Snap-in, 150 µF, 400 V, LS Series, ± 20%, Quick Connect, Snap-In, 22 mm
