LT3086MPR#PBF

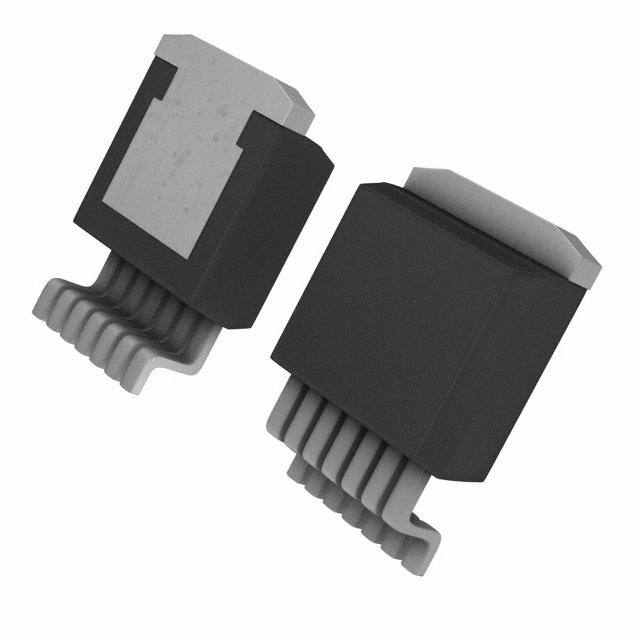

LINEAR TECHNOLOGY  LT3086MPR#PBF  电压稳压器, LDO, 可调, 1.4V至40V输入, 330mV压差, 400mV至32V/2.1A输出, TO-263-7

The is a multi-feature low noise low-dropout Linear Regulator that operates over a 1.4 to 40V input supply range. Dropout voltage at 2.1A is typically 330mV. One resistor sets output voltage from 0.4 to 32V. Output voltage tolerance is guaranteed to ±2% over line, load and temperature. The LT3086 is stable with ceramic output capacitors, requiring a minimum of 10µF. The LT3086 programmable cable drop compensation cancels output voltage errors caused by resistive connections to the load. A master/slave configuration allows paralleling of multiple devices for higher load current and heat spreading without external ballast resistor requirements. Output current and temperature monitoring along with a power good flag provide system diagnostic and debug capability. Internal fault circuitry includes thermal shutdown and current limit with fold-back. Thermal limit and current limit are also externally programmable.

.

Temperature monitor with programmable thermal limit

.

Programmable cable drop compensation

.

Parallel multiple devices for higher current

.

Precision, programmable external current limit

.

Power good flag with programmable threshold

.

Reverse-battery, current and output protection

.

±2% Tolerance over line, load and temperature

.

IMON = IOUT/1000 Output current monitor

.

<1µA Quiescent current in shutdown
