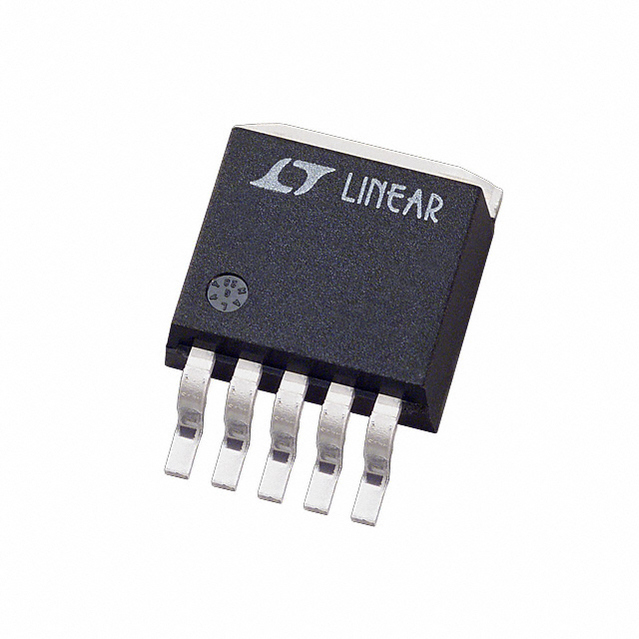

IC MULTI CONFIG ADJ 2A 5DD
DESCRIPTION
The LT®1074 is a 5A LT1076 is rated at 2A monolithic bipolar switching regulator which requires only a few external parts for normal operation. The power switch, all oscillator and control circuitry, and all current limit components, are included on the chip. The topology is a classic positive “buck” configuration but several design innovations allow this device to be used as a positive-to-negative converter, a negative boost converter, and as a flyback converter. The switch output is specified to swing 40V below ground, allowing the LT1074 to drive a tapped inductor in the buck mode with output currents up to 10A.
FEATURES
■ 5A Onboard Switch LT1074
■ 100kHz Switching Frequency
■ Greatly Improved Dynamic Behavior
■ Available in Low Cost 5 and 7-Lead Packages
■ Only 8.5mA Quiescent Current
■ Programmable Current Limit
■ Operates Up to 60V Input
■ Micropower Shutdown Mode
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1076IQ Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1076CQ 凌力尔特 | 完全替代 | LT1076IQ和LT1076CQ的区别 |
LT1076CQ#PBF 亚德诺 | 类似代替 | LT1076IQ和LT1076CQ#PBF的区别 |
