LNK302PN

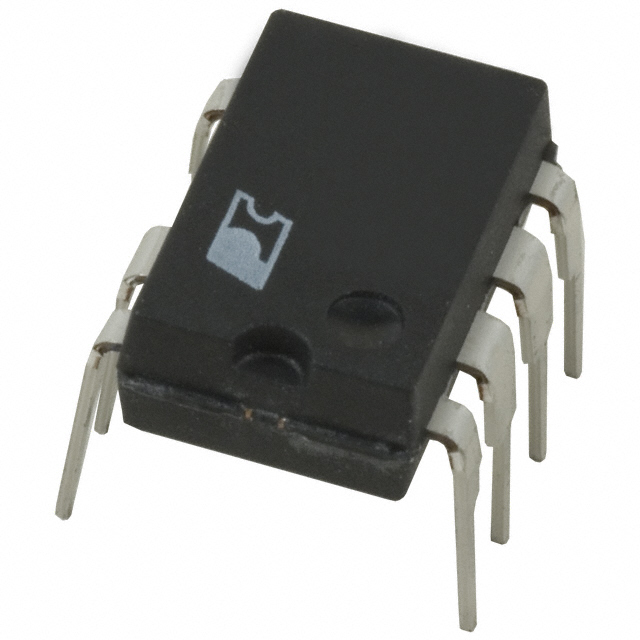

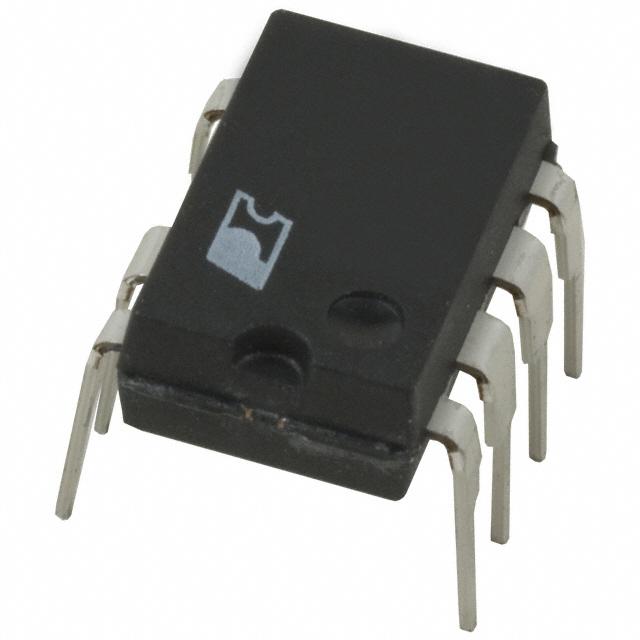

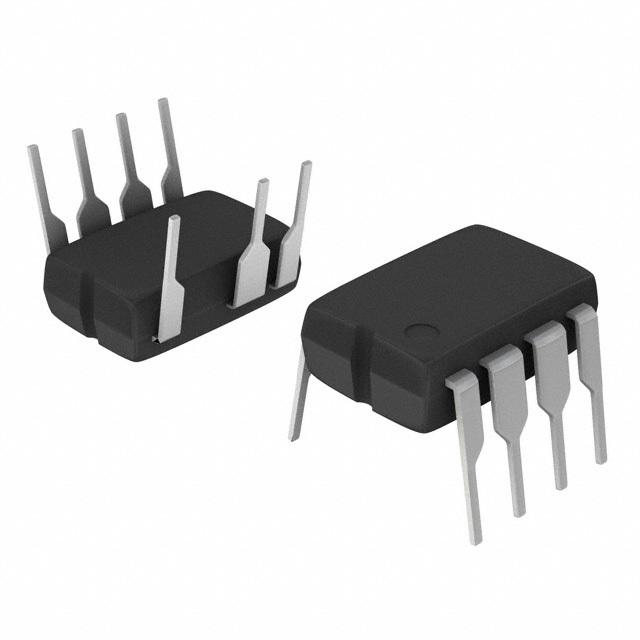

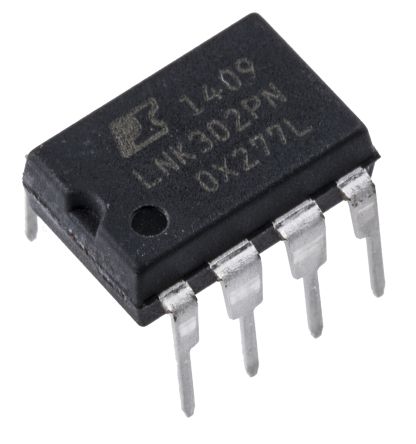

POWER INTEGRATIONS  LNK302PN  芯片, 交流/直流转换器, 降压-升压/反激式, DIP-7

LinkSwitch-TN，

LinkSwitch-TN 系列是极低功耗交流-直流、非隔离无源电源替换件。

700V 内部 MOSFET 额定值

自供电

开/关控制

滞后热关闭

功率限制

频率波动可减少 EMI

EcoSmart 待机/空载功耗低

LinkSwitch-TN is specifically designed to replace all linear and capacitor-fed cap dropper non-isolated power supplies in the under 360 mA output current range at equal system cost while offering much higher performance and energy efficiency. LinkSwitch-TN devices integrate a 700 V power MOSFET, oscillator, simple On/Off control scheme, a high-voltage switched current source, frequency jittering, cycle-by-cycle current limit and thermal shutdown circuitry onto a monolithic IC.

Tight tolerances and negligible temperature variation

System level thermal overload, output short-circuit and open loop protection

Supports buck, buck-boost and flyback topologies

Excellent line and load regulation even with typical configuration

High bandwidth provides fast turn-on with no overshoot

Current limit operation rejects line ripple

Built-in current limit and hysteretic thermal protection

### 开关电压调节器，Power Integrations
