LDO Regulator Pos 0.8V0.9V1V1.1V1.2V1.5V1.8V 5A Automotive 28Pin QFN EP T/R
Say goodbye to unstable voltages with this LDO linear regulator from . It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.02@1A|0.05@2.5A|0.085@5A V. This voltage regulation device"s single output can produce a current up to 5 A. With a small input voltage of 0.95 V and a max of 3 V, this will supply sufficient power to your circuit. With a selectable output that has a voltage of 0.8|0.9|1|1.1|1.2|1.5|1.8 V, this is power management at its best. Maintain a constant voltage level with a load regulation of -7mV and line regulation of 1mV. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. The maximum dropout voltage is 0.035@1A|0.065@2.5A|0.12@5A V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 0.8V ~ 1.8V
输出电流 5 A
跌落电压 0.02V @1A,0.05V @2.5A,0.085V @5A
输入电压Max 3 V
输入电压Min 0.95 V
输出电压Max 1.8 V
输出电压Min 0.8 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 0.95V ~ 3V
安装方式 Surface Mount

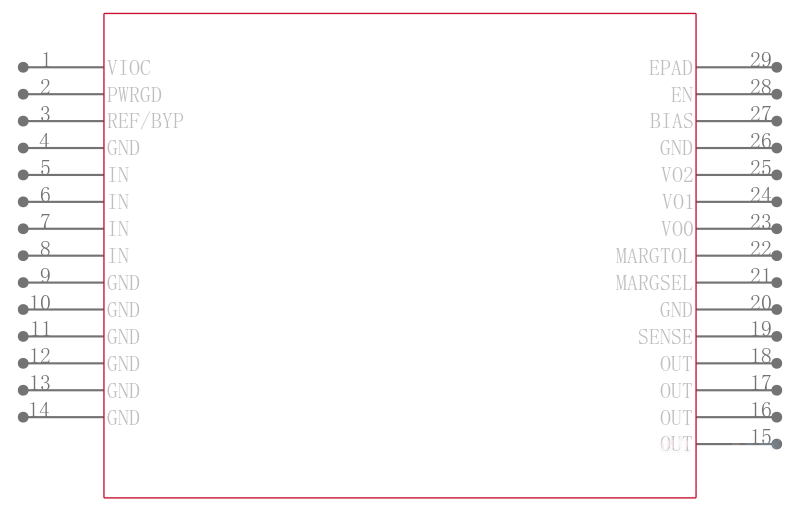

引脚数 28

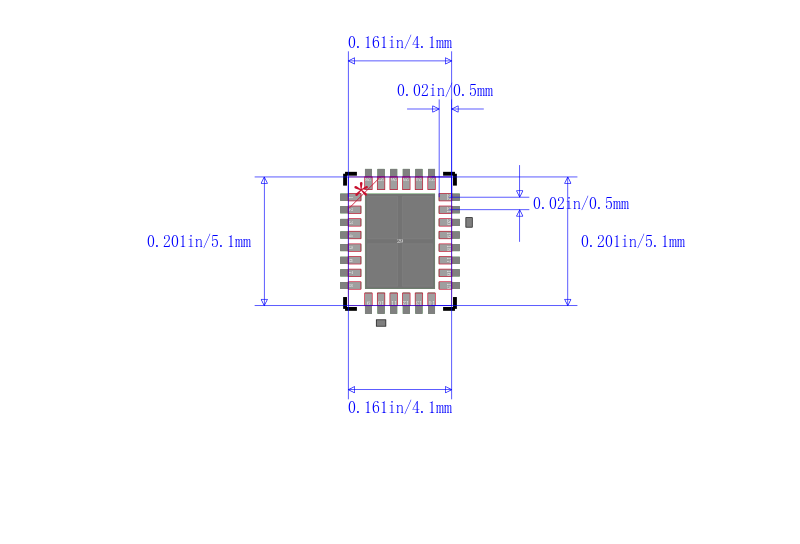

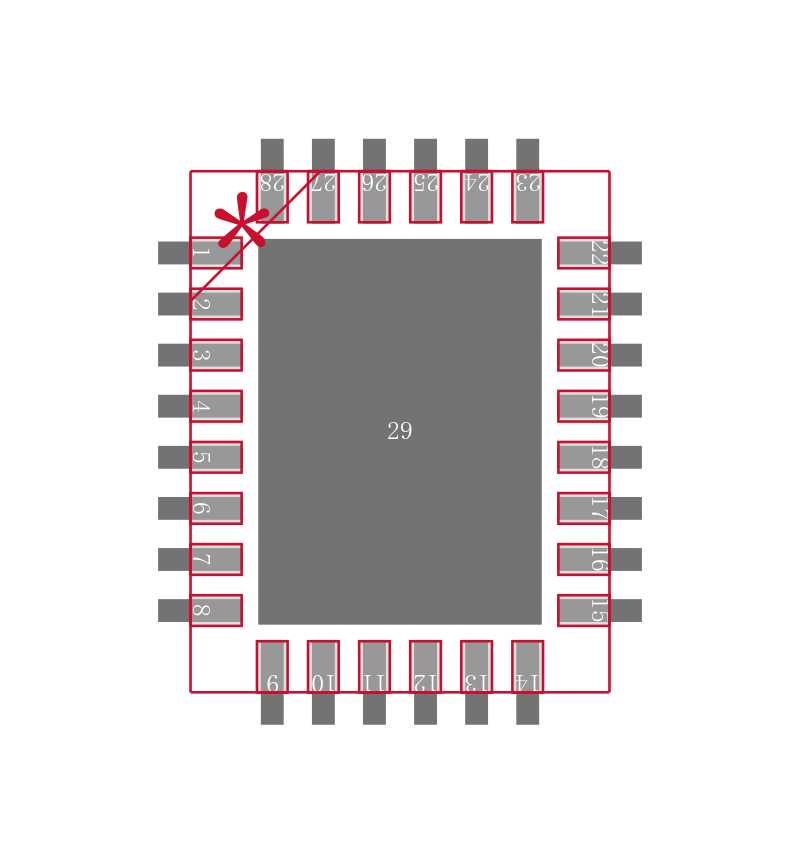

封装 QFN-28
高度 0.75 mm
封装 QFN-28
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3070EUFD#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3070EUFD#PBF 凌力尔特 | 类似代替 | LT3070EUFD#TRPBF和LT3070EUFD#PBF的区别 |
