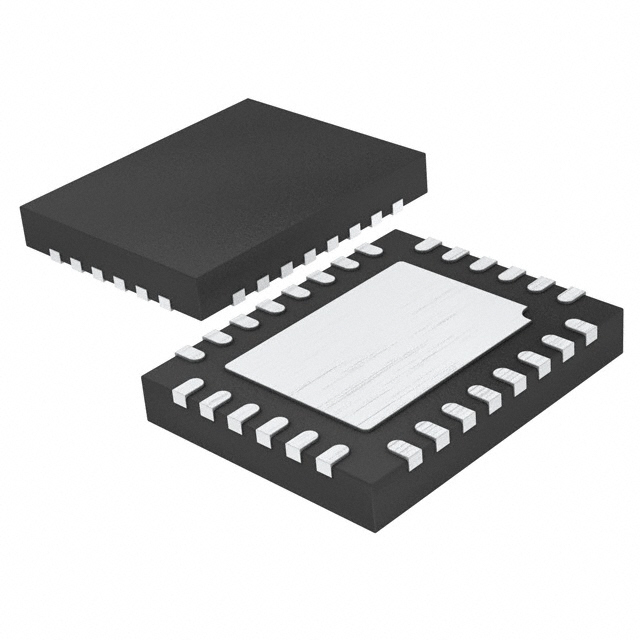

LINEAR TECHNOLOGY LTC3633AEUFD-3#PBF 芯片, 降压稳压器, 双路, 3.6-20V, 4MHZ, 3A, 28QFN
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 3 A. Use this part at voltages between 3.6 V and 20 V. With an adjustable output that has a voltage of 1.5 to 12 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.05%Typ and line regulation of 0.002%/VTyp. This converter is 95 % efficient. You can operate this at a switching frequency of 500 to 4000 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 2
输出电压 1.5V ~ 12V
输出电流 3 A
针脚数 28
开关频率 4.6 MHz
输入电压Max 20 V
输入电压Min 3.6 V
输出电压Max 12 V
输出电压Min 1.5 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3.6V ~ 20V
安装方式 Surface Mount
引脚数 28
封装 QFN-28
封装 QFN-28
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3633AEUFD-3#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3633AEUFD-3#TRPBF 凌力尔特 | 功能相似 | LTC3633AEUFD-3#PBF和LTC3633AEUFD-3#TRPBF的区别 |
