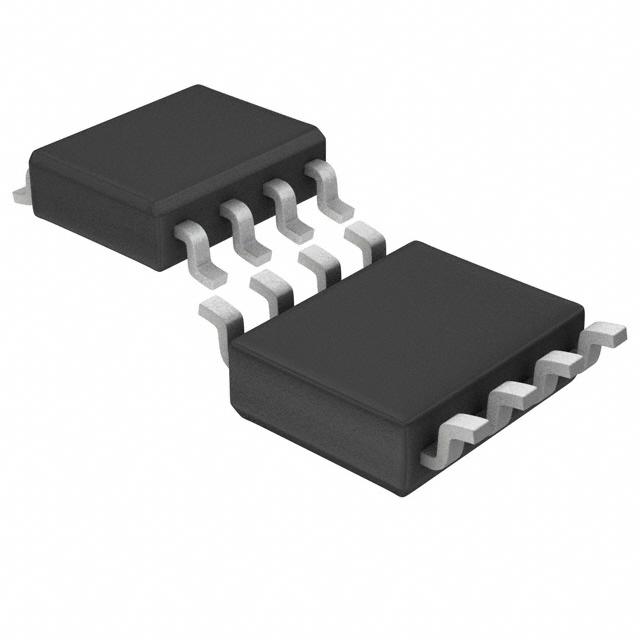

LT1374HVCS8#PBF

LINEAR TECHNOLOGY  LT1374HVCS8#PBF  直流-直流开关降压逐步递减稳压器, 可调, 5V-32V输入, 2.42V-21.5V输出, 4.5A输出, SOIC-8

The is a monolithic buck-mode Switching Regulator for use with battery-powered systems. A 4.5A switch is included on the die along with all the necessary oscillator, control and logic circuitry. High switching frequency allows a considerable reduction in the size of external components. The topology is current mode for fast transient response and good loop stability. Both fixed output voltage and adjustable parts are available. A special high speed bipolar process and new design techniques achieve high efficiency at high switching frequency. Efficiency is maintained over a wide output current range by using the output to bias the circuitry and by utilizing a supply boost capacitor to saturate the power switch. Full cycle-by-cycle short-circuit protection and thermal shutdown are provided. Standard surface mount external parts may be used, including the inductor and capacitors. A shutdown signal reduces supply current to 20µA.

.

Uses all surface mount components

.

Cycle-by-cycle current limiting

.

Easily synchronizable

.

Inductor size reduced to 1.8µH

.

0.07R Saturating switch design
