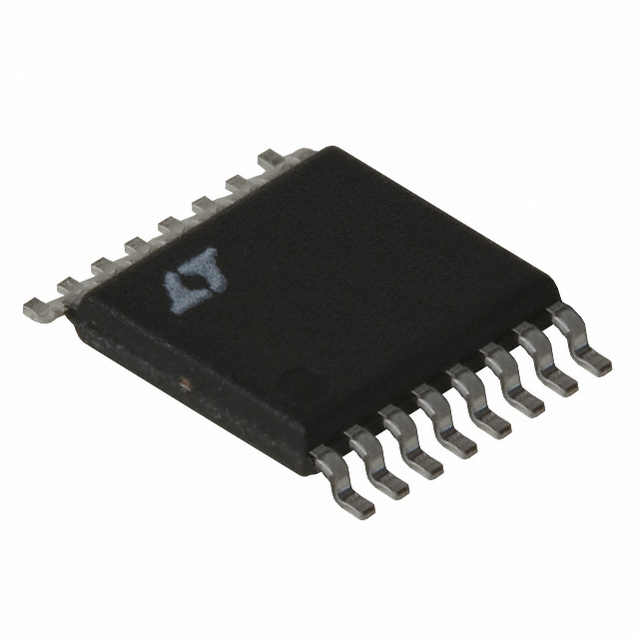

Conv DC-DC 5.5V to 60V Step Down Single-Out 5V 3A Automotive 16Pin TSSOP EP Tube
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 3 A. The best way to provide power to your application is by using this, which needs a voltage of at least 5.5 V and no higher than 60 V. With a fixed output that has a voltage of 5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a line regulation of 0.15%/V. It has a switching frequency of 540 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 5 V
输出电流 1.5 A
开关频率 500 kHz
拓扑结构 Buck
输入电压Max 60 V
输入电压Min 5.5 V
输出电压Min 5 V
输出电流Max 3 a
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 5.5 V
输入电压 5.5V ~ 60V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1956IFE-5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1956EFE-5#PBF 凌力尔特 | 完全替代 | LT1956IFE-5#PBF和LT1956EFE-5#PBF的区别 |
LT1956IFE-5#TRPBF 凌力尔特 | 完全替代 | LT1956IFE-5#PBF和LT1956IFE-5#TRPBF的区别 |
LT1956EFE-5#TRPBF 亚德诺 | 功能相似 | LT1956IFE-5#PBF和LT1956EFE-5#TRPBF的区别 |
