LC136 BK088概述

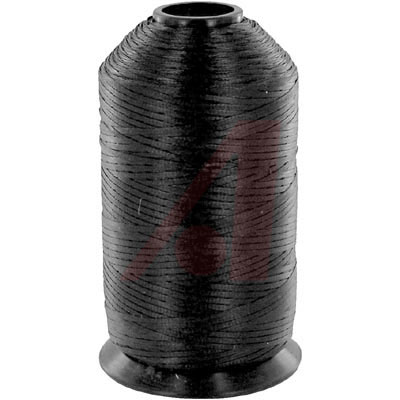

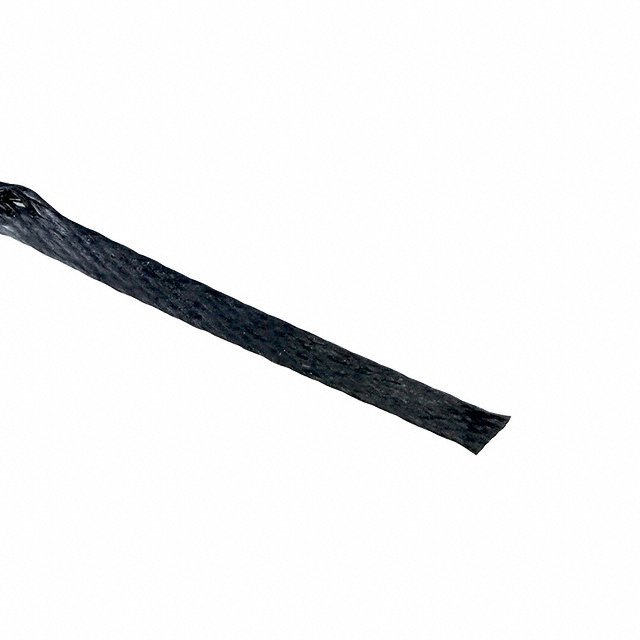

ALPHA WIRE LC136 BK088 Lacing Cord, Flat Braided, Wax Finish, Nylon, Black, 50lb, 0.36mm, 457m, A-A-52080B-3

** Nylon and Dacron Flat Braided Lacing Tape.** All types are nylon. All types are designation MIL-T-43435 with variations for type, size, and finish. LC-132 has a finish of synthetic rubber-like resin with non-mercuricfungicidal properties. Melting point is above 190°F. Softens at 140°F, but doesn"t flow. LC-134 and LC-136 have a finish of micro-Crystalline wax with amelting point above 130°F, compounded with a fungicide containing neither copper nor mercury. Soft, pliable and easy to tie. Also meets MIL-T-713 Type P,Class 2. LC-140 has a finish of a special continuous coating of fungistatic synthetic rubber. Knots tied with this finish will not slip. Extremely pliable and soft. LC-143 has a thermoplastic synthetic resin with a melting point above 350°F for use where a "wax free" type is specified. Dry, non-flaking finish. Available in white and black — insert 1 white or 2 black where X appears in Stock Number.

LC136 BK088中文资料参数规格
技术参数

工作温度Max 121 ℃

工作温度Min -55 ℃

外形尺寸

长度 457.20 m

宽度 2.2 mm

厚度 0.36 mm

物理参数

颜色 Black

材质 Nylon

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买LC136 BK088
型号: LC136 BK088
制造商: Alpha Wire
描述:ALPHA WIRE LC136 BK088 Lacing Cord, Flat Braided, Wax Finish, Nylon, Black, 50lb, 0.36mm, 457m, A-A-52080B-3
